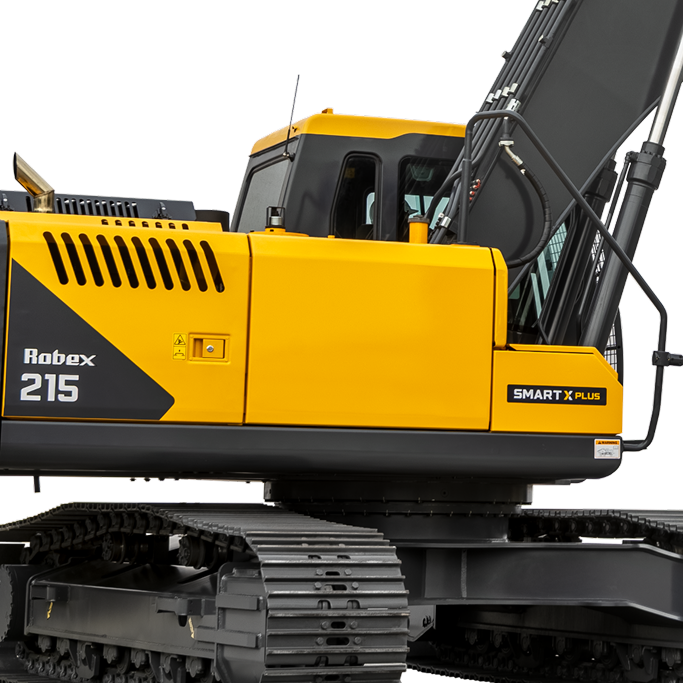

Hyundai's R215 SMART X PLUS excavator is built for excellent productivity through its smooth performance and unmatched efficiency available at best excavator price in India. This excavator is designed with a long undercarriage for better stability and an advanced ECO Mode to ensure higher profits through maximum fuel efficiency.
| Equipment | UNIT | R215 SMART X PLUS |
|---|---|---|
| Engine Model | Cummins 6BT5.9C | |
| Gross Power (HP) | HP @ rpm | 140 @ 2000 |
| Operating Weight | Kgs | 21700 |
| Bucket Range | Cu.M | 0.92 - 1.5 |
| Swing speed | rpm | 11 |
| Travel speed, high/ low | km/hr | 5.3 / 3.4 |
| Max. digging reach on ground | mm | 9311 |
| Max. digging Depth | mm | 6236 |
| Tail swing radius | mm | 2845 |
| Bucket digging force | kgf. | 16000 |
| Arm crowd force | kgf. | 12600 |
| Bucket Capacity | Cu.M | 1.0 GP/ 1.05 GP / 0.92 HD / 0.95 HD / 1.5 Coal |
To ensure best productivity, the Variable Displacement Axial Piston type pump with electro hydraulic control function provides a wide range of flow at various workloads. The open center design of the main control valve provides fast synchronization between joystick and hydraulic components. Thus increasing speed and smoothness of operations.

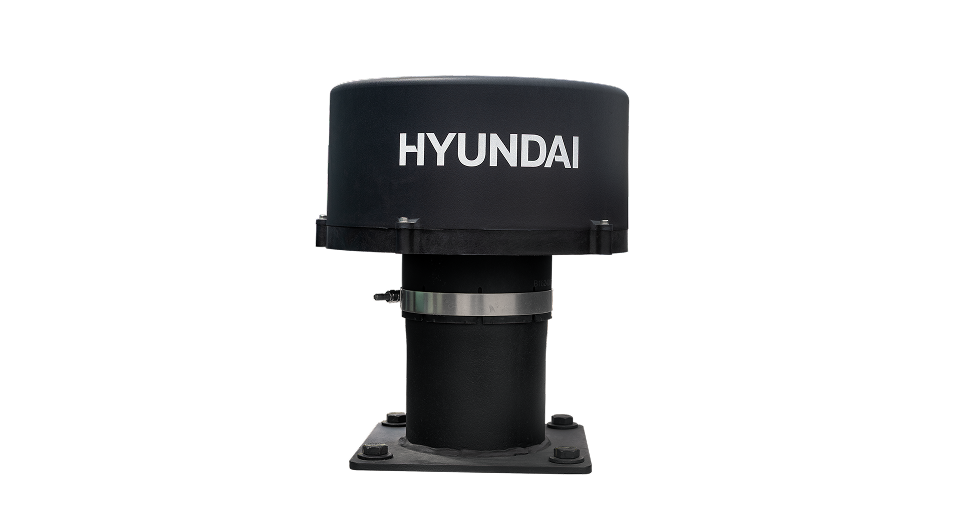

A cyclonic air precleaner removes large dust particles from the air before it enters the main air filter, reducing filter clogging. This improves engine performance and extends filter life, leading to better fuel efficiency and reduced maintenance.
The digital cluster displays key machine information like oil temperature, coolant temperature, and other vital statistics. Optimised performance is achieved by letting operator to choose between three power modes and two work modes and two User Modes.
The Hydraulics and attachments are designed to offer high digging forces.
One touch deceleration switch on top of LH joystick lowers the engine RPM when selected. The saves fuel by regulating pump and engine. Auto Idle function moderates engine RPM to idle state when machine remains idle for 4 sec by enabling MCU to send a signal to engine. This in turn reduces fuel consumption and operation cost.
The auto-piloted swing priority increases hydraulic oil flow to swing circuit in combined operation, which leads to faster swing cycle for more productivity & profitability.
The sensors in this kit monitor undue loads and send signals to the Main Control Valve to cut down unnecessary fuel consumption. It helps to increase fuel efficiency.

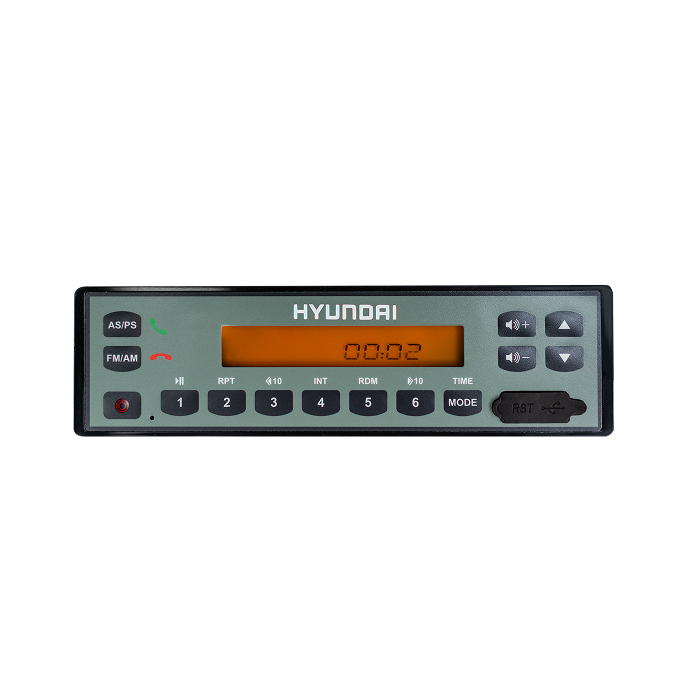

The R210 SMART X PLUS Series excavator is equipped with features designed to enhance operational convenience. A removable floor mat for easy cleaning and improved maintenance, helping to keep the operator area neat and well-maintained. The integrated Bluetooth FM radio provides added functionality for communication and entertainment. LED lamps offer improved visibility in low-light conditions, supporting safer and more efficient operations. Additionally, the fuel filler pump simplifies the refueling process, reducing downtime on site. and Hyundai’s unique remote management system (Hi-Track) with multingual user interface allows customers to access machine operating information & obtain service & maintenance alerts at the touch of a button.

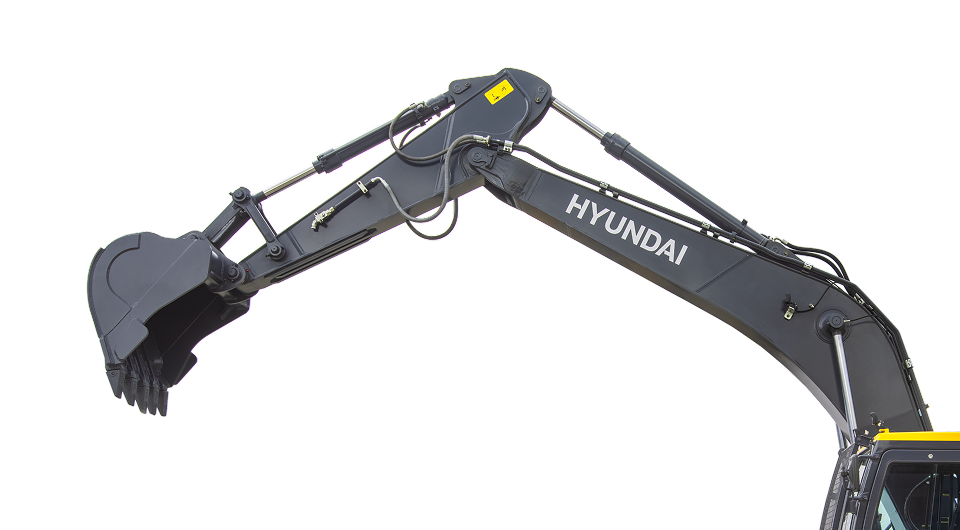

New improved boom profile for better strength. Use of Steel dimple bushes and polymer shims to enhance durability in high-stress joint areas. The dimple bush design promotes better grease retention, improving lubrication and reducing friction over time. Polymer shims provide enhanced resistance to wear and corrosion, helping maintain tight clearances and extending the service life of the boom and arm components. Both Boom & Arm made with high tensile strength steel and are reinforced with steel bearings and internal baffle plates to maximize impact strength.

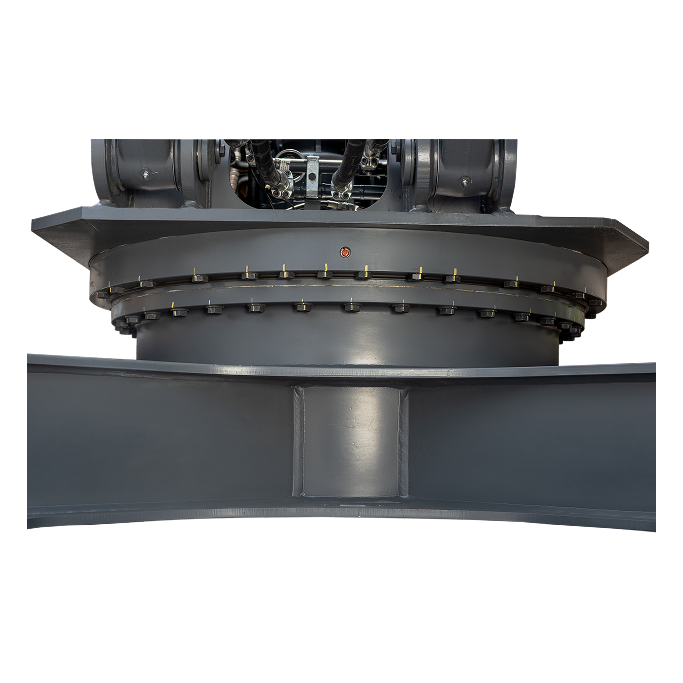

New forged ring body in lower frame enhances the durability, structural integrity and increases the machine life.

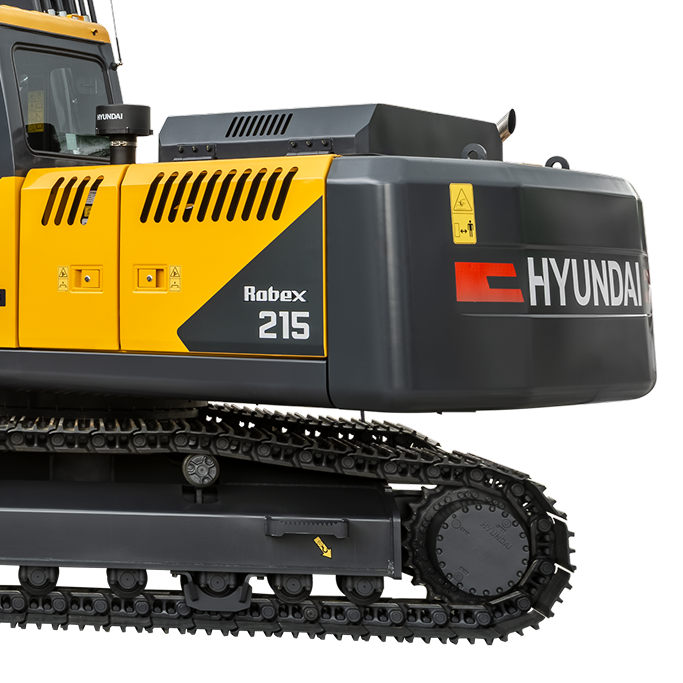

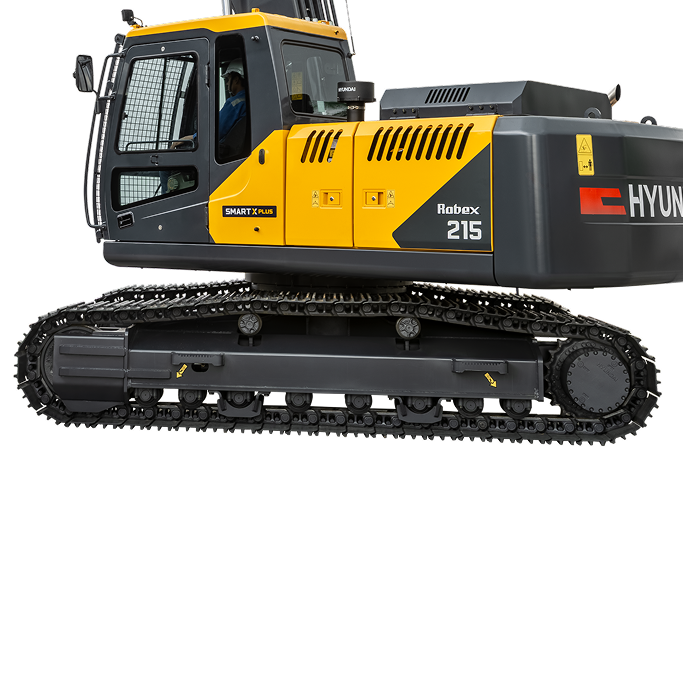

The Side Member reinforcement protects the idler from any damage in tough terrains. A heavy-duty track shoe provides better stability and durability on harsh terrains.

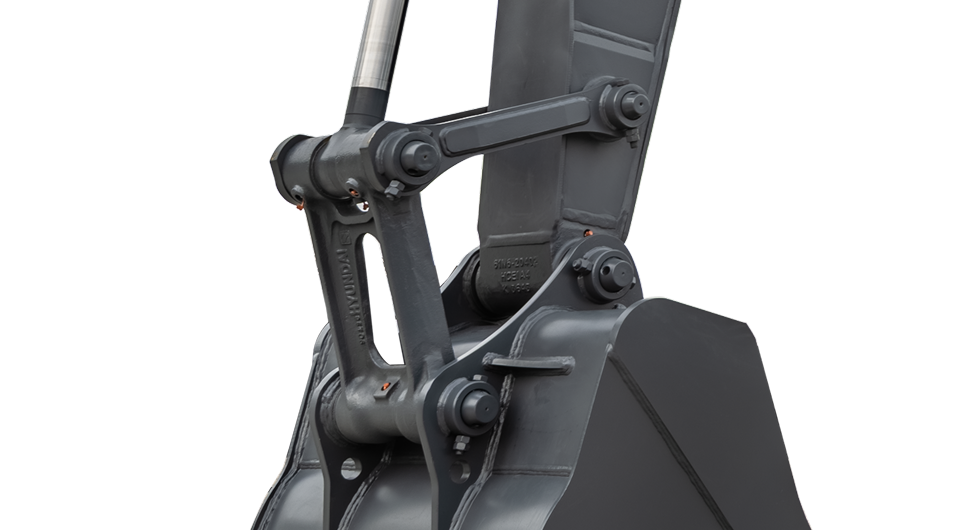

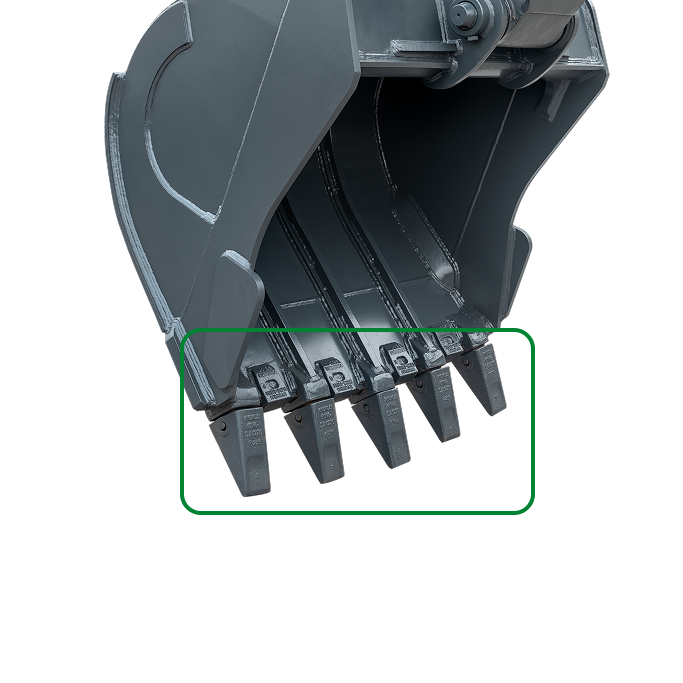

The Control link of hydraulic excavator is casted in one-piece design. The bucket linkages are reinforced to ensure high durability and high bucket digging forces.

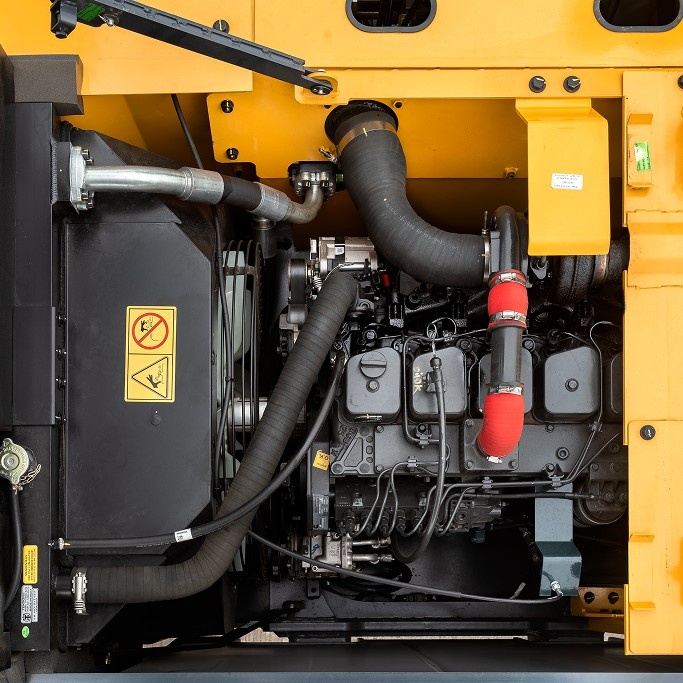

This feature monitors coolant temperature and automatically lowers engine speed if it overheats, thereby preventing premature failure of the excavator.

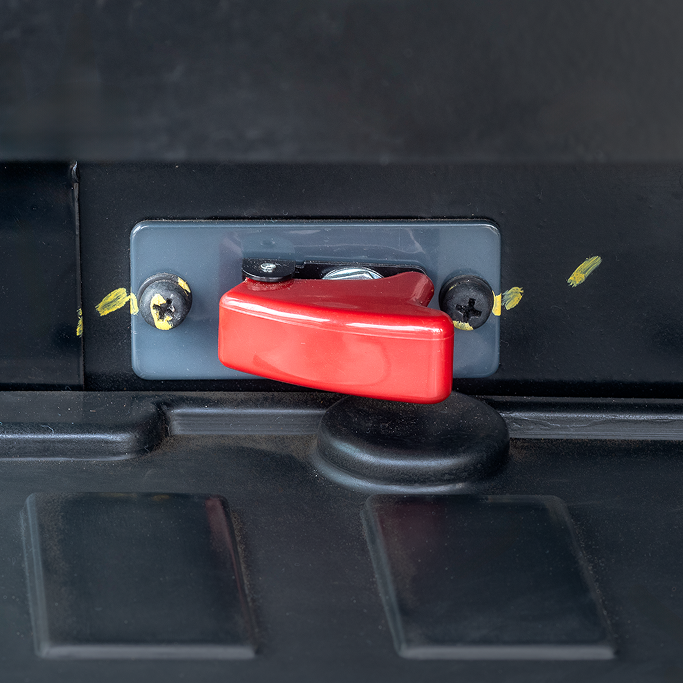

The emergency shutdown switch enhances operator safety by providing a quick and reliable way to instantly stop the machine during emergency situations.

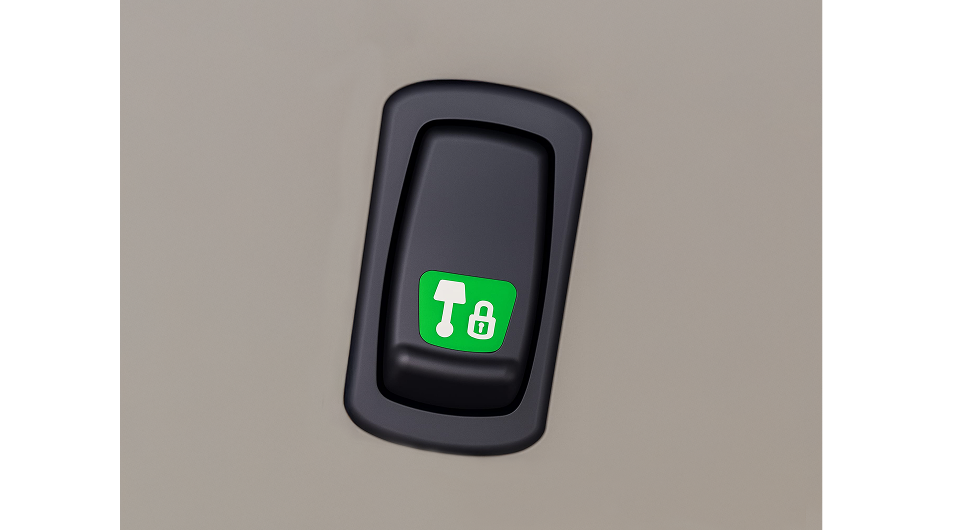

Swing lock enhances safety while working on slopes, gradients.
The tank cover on the hydraulic excavator keeps the fuel tank safe from hitting against any external objects during excavation operations
