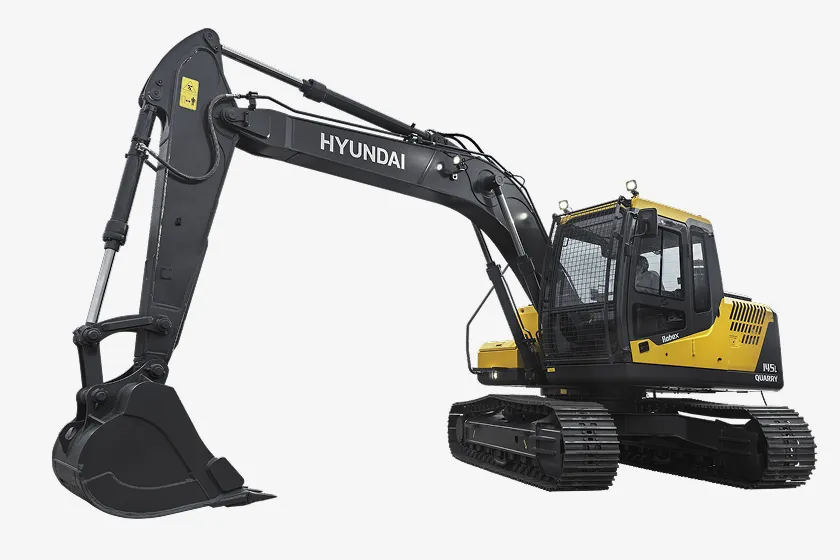

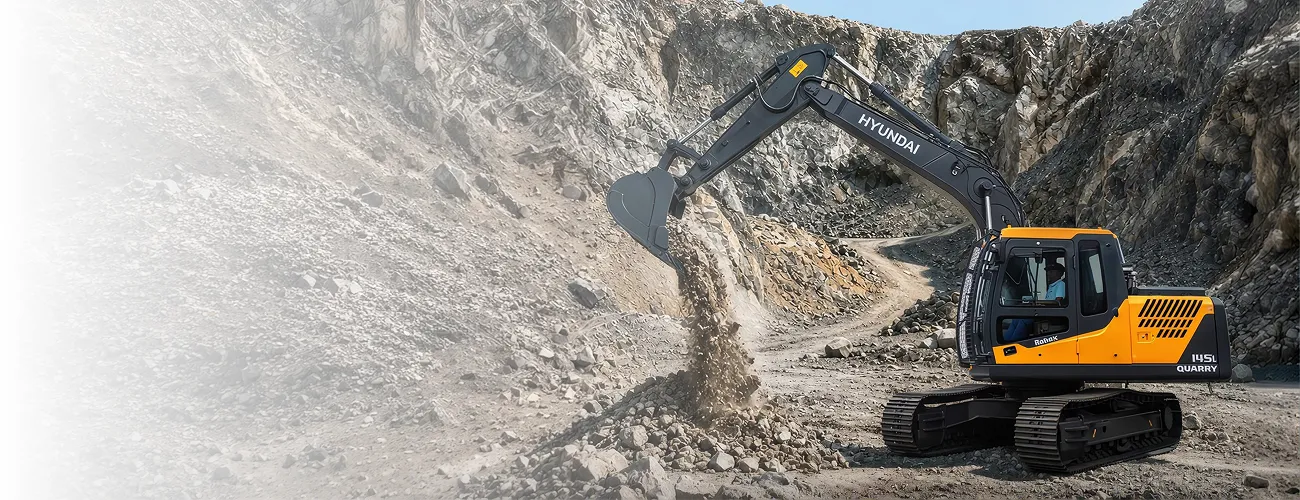

Developed for demanding quarry, material handling, and heavy excavation operations, the Hyundai R145L Quarry Smart Plus combines an advanced electro-hydraulic control system with a 105 HP turbocharged engine to deliver efficient digging forces and smooth loading cycles.
Its long undercarriage, track rail guard, and heavy-duty 0.65 m³ bucket ensure exceptional stability and productivity in tough environments. With an Advanced CAPO system and a 7" Intelligent Display for clear operational insights, this 15-ton-class excavator provides reliable performance and optimised life cycle costs.
| Equipment | UNIT |
|---|---|
| Engine Power | Gross Power 105 HP @ 2,200 rpm |
| Operating Weight | 15,040 kg |
| Bucket Capacity | 0.65 m³ HD |
| Boom Length | 4.6 m (15' 1") HD Mono Boom |
| Arm Length | 2.1 m (6' 11") HD Arm |
| Counterweight | 2,500 kg |
| Track Shoe Width | 500 mm (10 mm thickness) |
| Max Digging Reach | 8,075 mm (26' 6") |
| Max Digging Depth | 5,108 mm (16' 9") |
| Max Digging Height | 7,851 mm (25' 9") |
| Max Loading Height | 5,780 mm (18' 12") |
| Max Vertical Wall Depth | 4,849 mm (15' 11") |
| Bucket Digging Force (ISO / SAE) | 10,290 kgf (101 kN) / 8,860 kgf (86.9 kN) |
| Arm Crowd Force (ISO / SAE) | 7,510 kgf (73.7 kN) / 7,210 kgf (70.7 kN) |

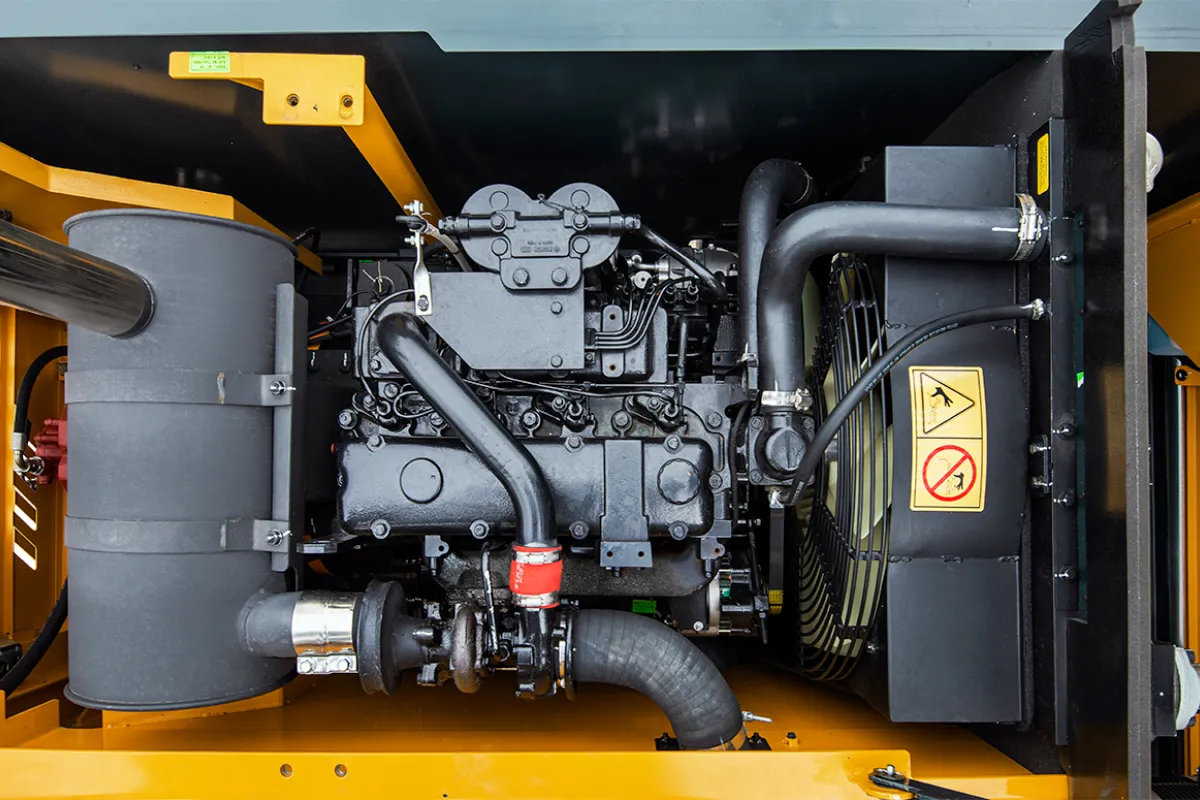

Driven by a 4-cylinder, turbocharged, water-cooled diesel engine rated at 105 HP @ 2,200 rpm, designed for heavy-duty applications and consistent operation.

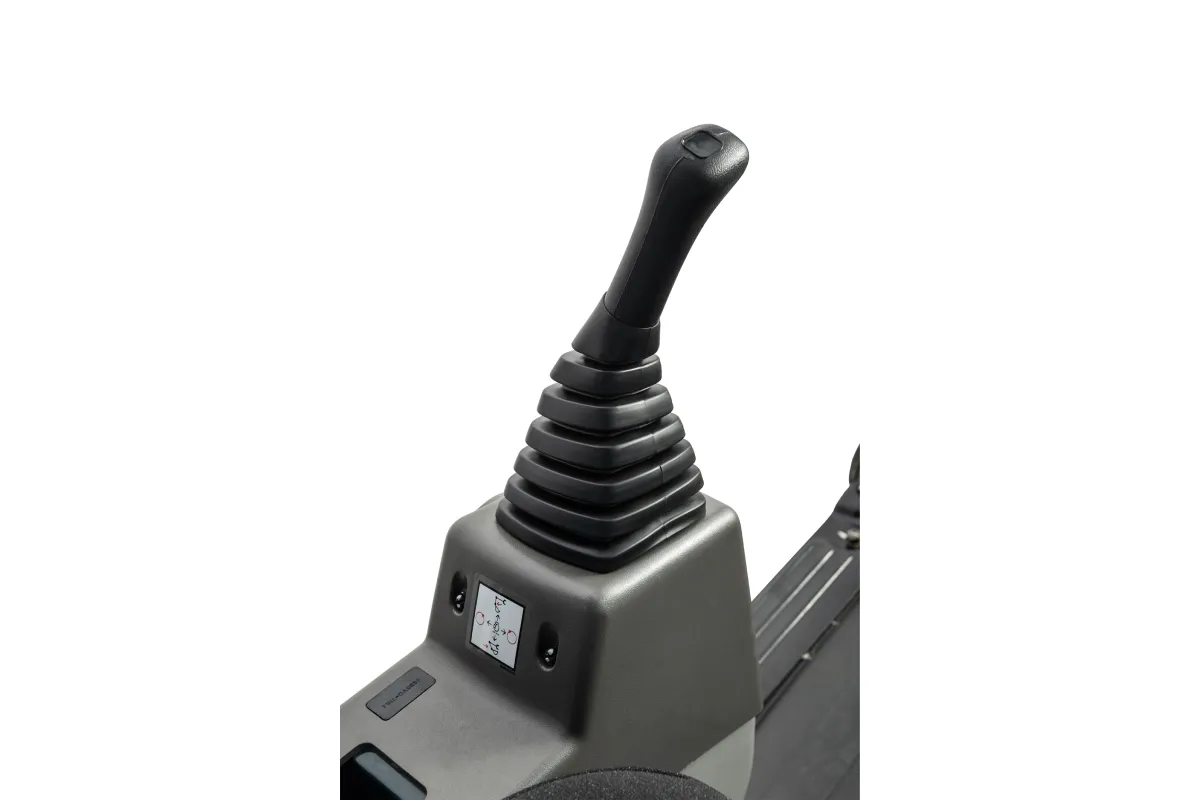

Includes an auto-deceleration and one-touch deceleration system to help moderate engine speed and assist in regulating fuel usage during idle periods.

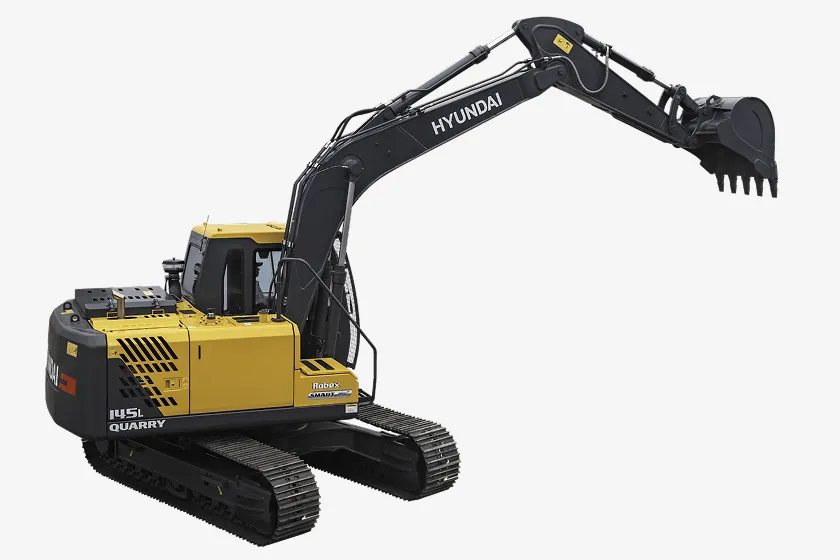

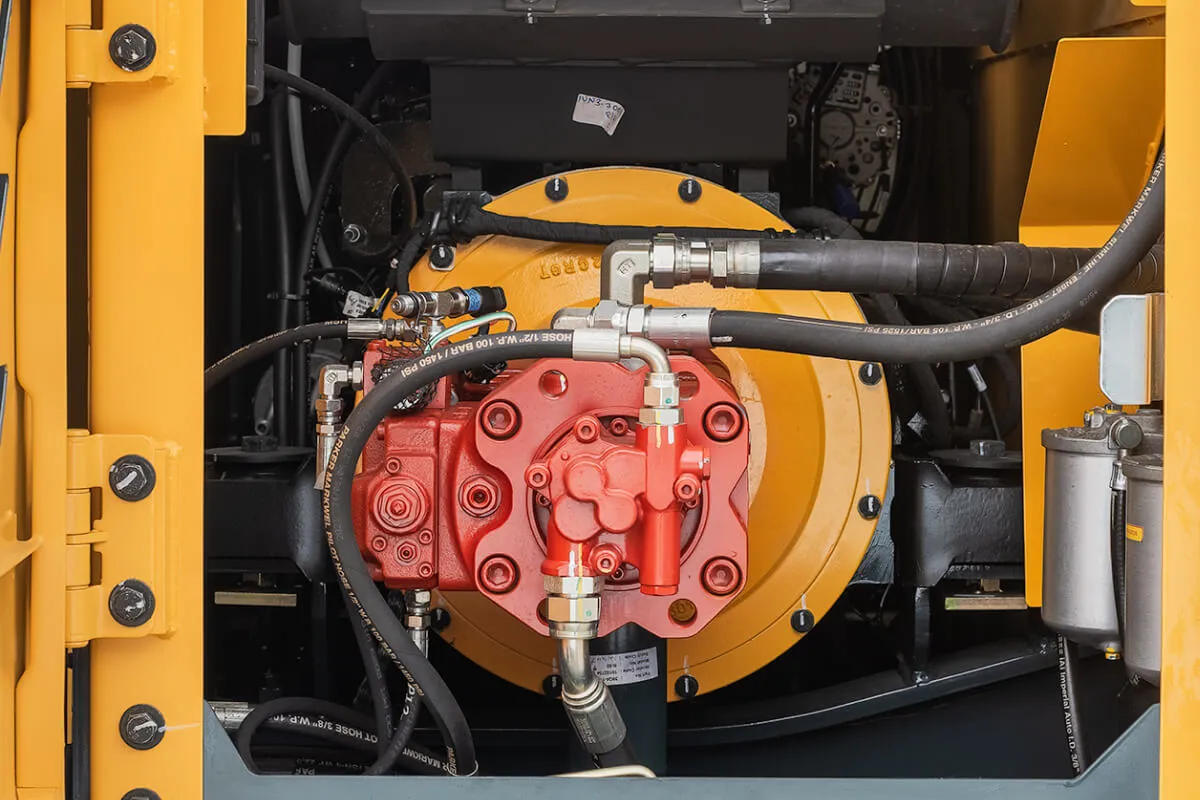

Features an electro-hydraulic control system with hydraulic flow summation, swing priority, and a regeneration system to support smooth arm movement and cycle management.
Equipped with 3 Power Modes and 2 Work Modes, including Breaker Mode, to adjust operating parameters based on application needs.
Utilises electro-hydraulic controls to assist in balancing flow requirements across varied hydraulic operations.

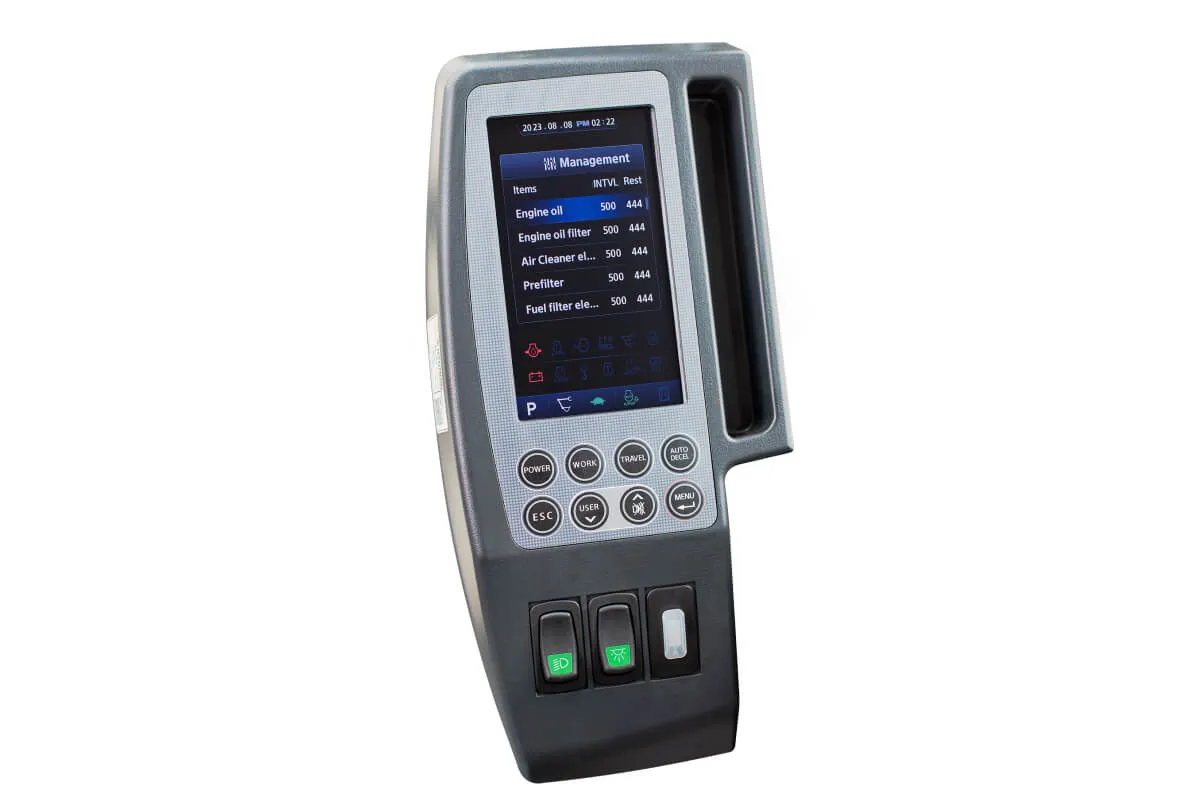

Integrated with the Advanced CAPO (Computer Aided Optimisation) system alongside a 7-inch intelligent display / LCD panel for central monitoring, error code reporting, and self-diagnostics.

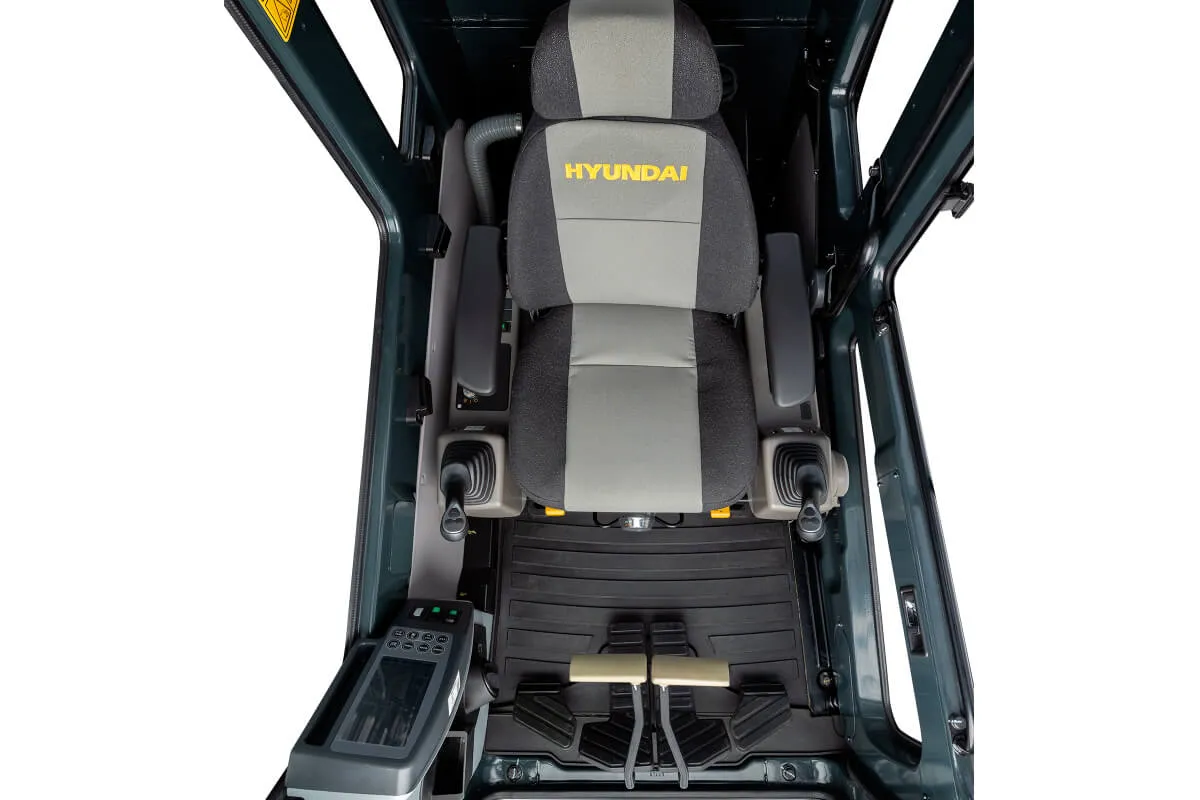

Features a spacious AC cabin with a multi-adjustable premium suspension seat, pilot-operated joysticks, mobile holder, 24V power socket, mobile charging point, and rubber-coated travel pedals.

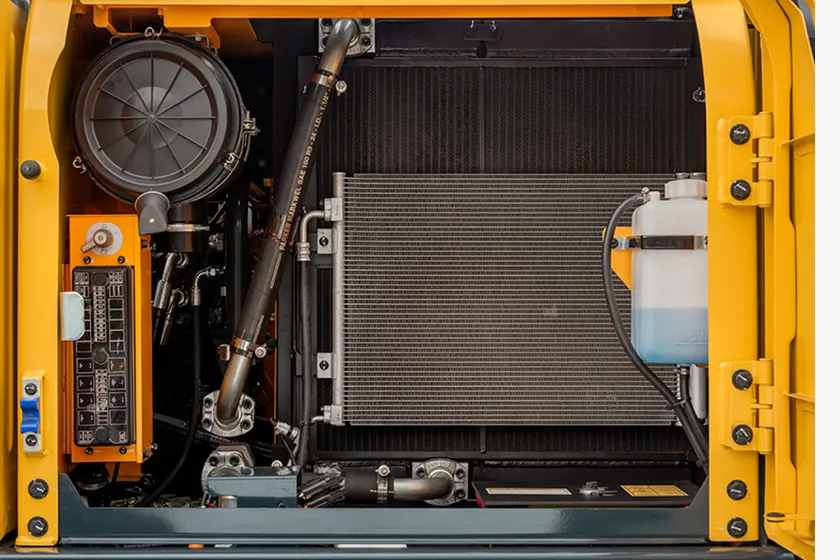

Inclarger-sizedger size radiator, air pre-cleaner, and removable clean-out screen for the oil cooler to support engine cooling under continuous operation.

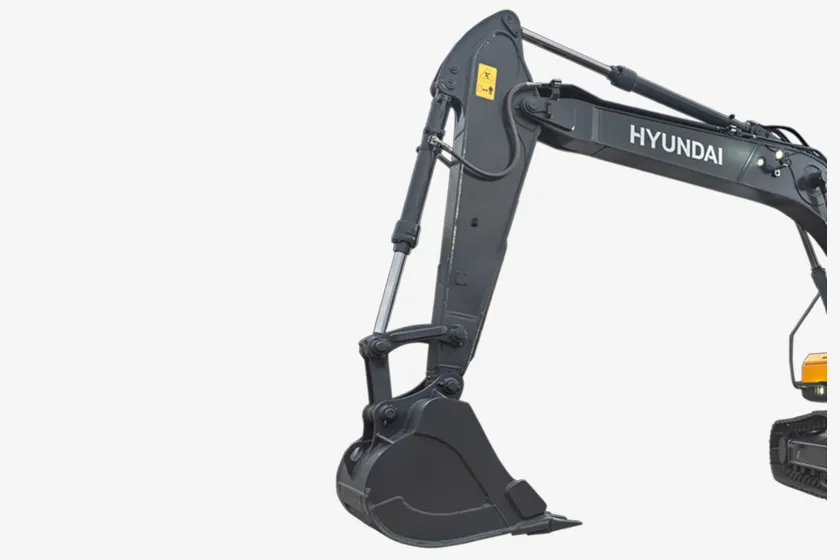

Constructed with a 4.6 m HD mono boom and 2.1 m HD arm designed for heavy-duty environments.
Comes standard with a 0.65 m³ heavy-duty bucket designed to handle demanding material conditions.

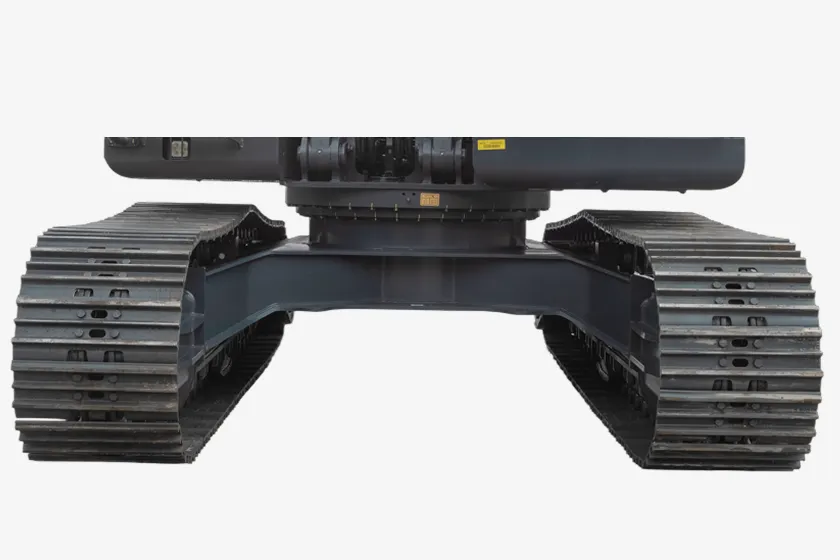

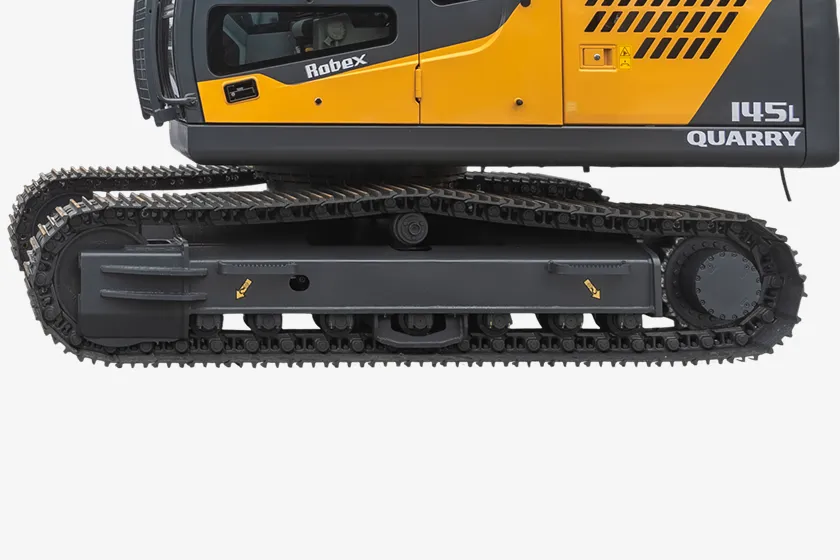

Built with a long undercarriage, track rail guards, and 500 mm wide track shoes with 10 mm thickness for structural stability.
Features a 2,500 kg counterweight and heavy-duty frame design to assist in maintaining stability during digging operations.

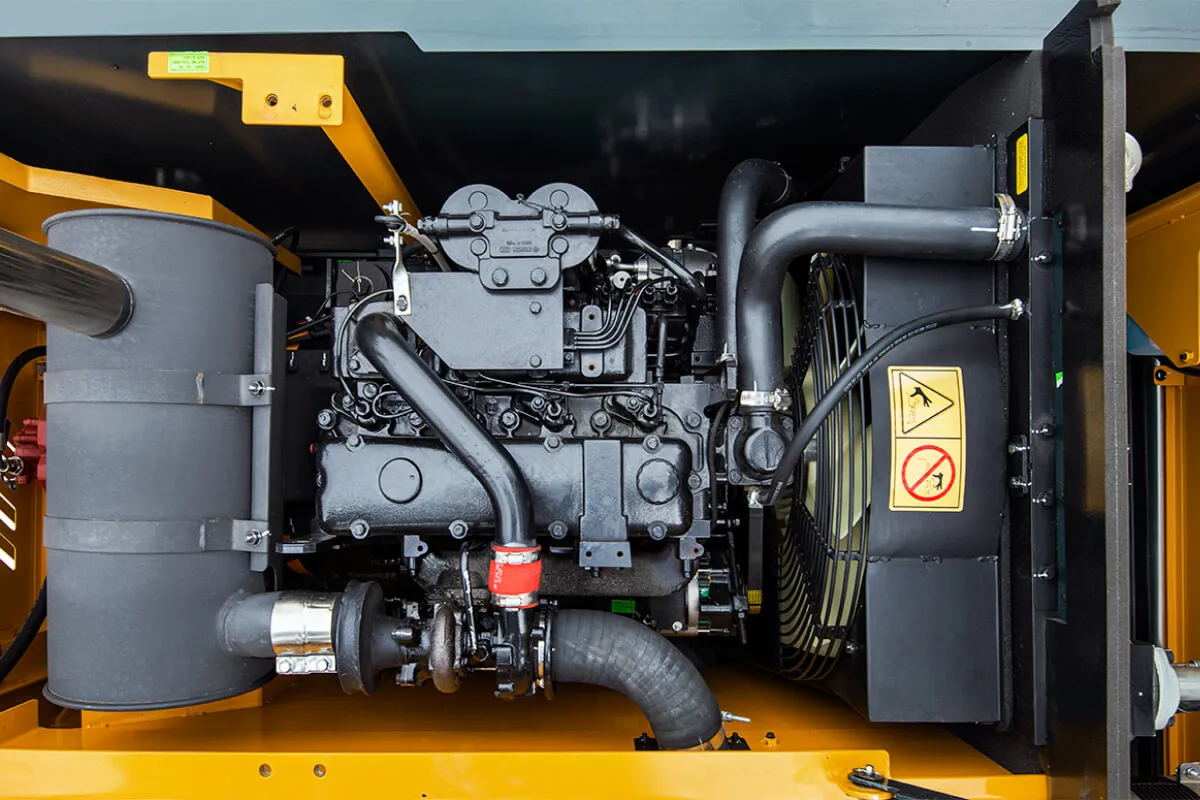

Equipped with an auto-overheat prevention system that monitors operational parameters to protect engine components.
Designed with safety glass windows, cabin protector options, and secure cabin access points for operator safety.

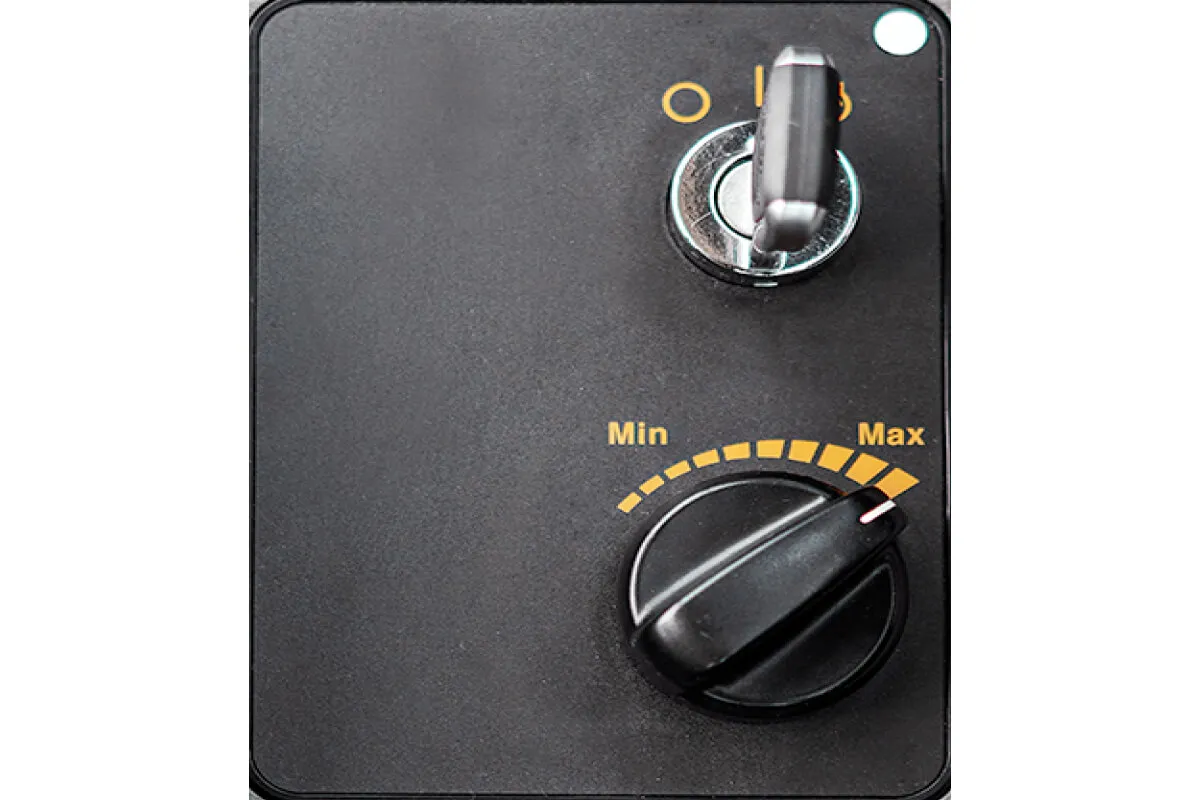

Includes a battery master switch and standard lockable doors with a single key system.
Features central monitoring indicators for engine oil pressure, coolant temperature, hydraulic oil temperature, air cleaner clogging, and battery status.
The R145L Quarry Smart Plus features a 105 HP engine @ 2200 rpm, an operating weight of 15,040 kg, a 0.65 m³ heavy-duty bucket, and a max digging reach of 8,075 mm.
It includes an electro-hydraulic control system, Advanced CAPO system, swing priority, regeneration system, 3 Power Modes, and 2 Work Modes (including Breaker Mode).
