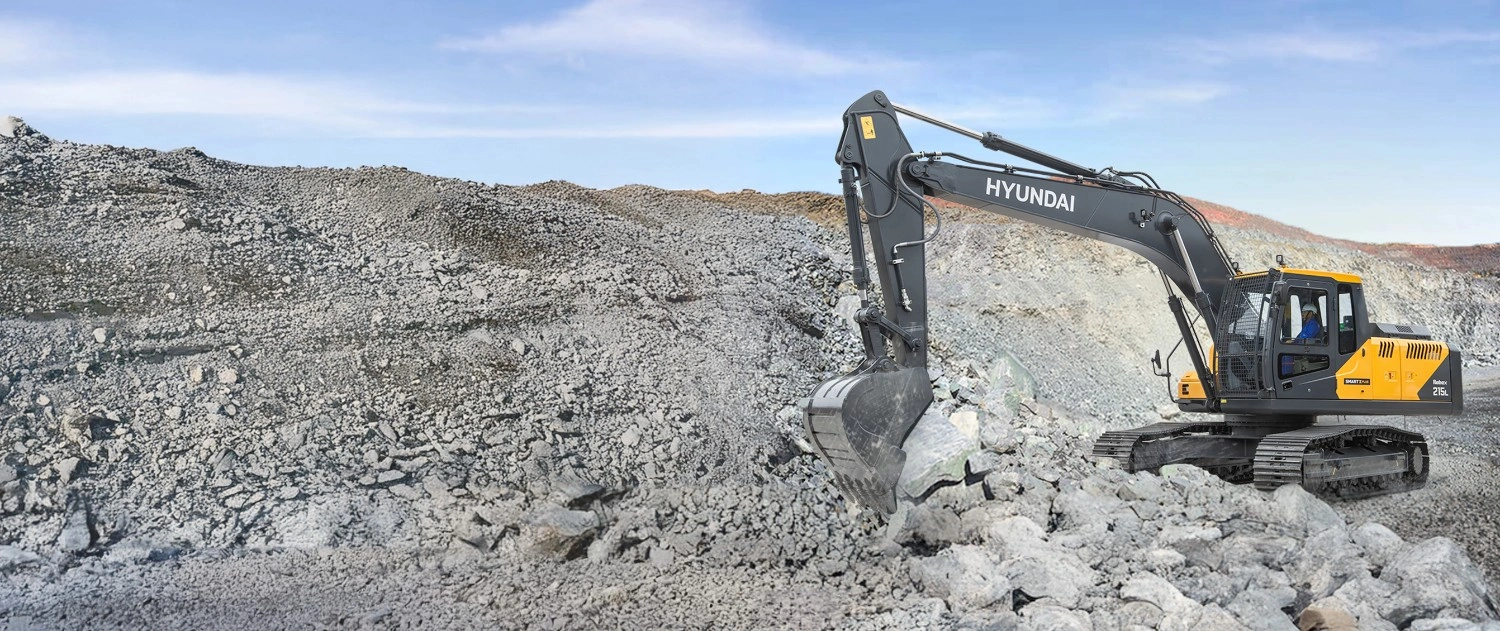

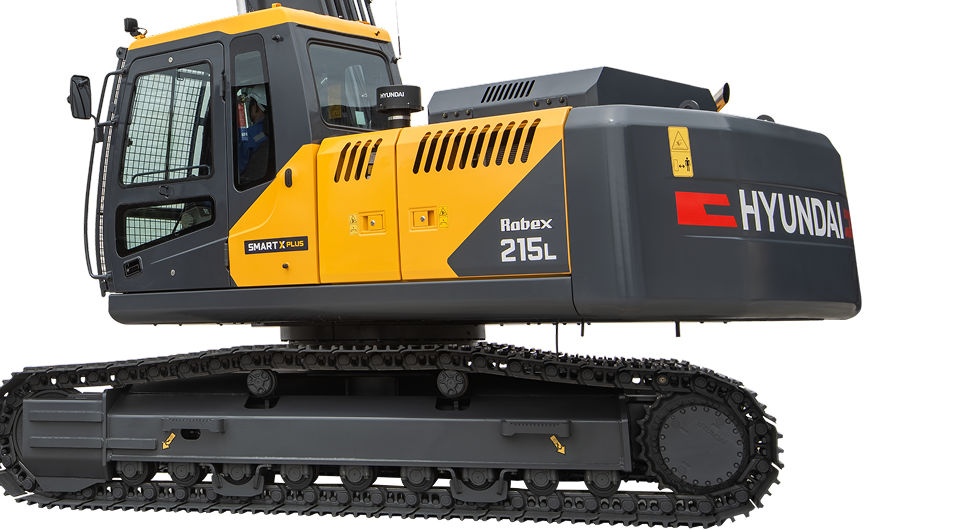

R215L SMART X PLUS is part of Hyundai's Mining Crawler Excavator, designed to deliver excellent productivity in the toughest mining terrains. The Crawler Excavator is equipped with features such as high performing Cummins Engine, Advanced CAPO system, hydraulic flow summation, energy regeneration system and excellent digging forces at best poclain price. This earthmoving equipment provides superior performance at low cost of operation.
| Equipment | UNIT | R215L SMART |
|---|---|---|
| Engine Model | Cummins 6BTAA-5.9C | |
| Gross Power | hp @ rpm | 148 @ 2000 |
| Operating Weight | Kgs | 22200 |
| Bucket Range | Cu.M | 0.87 - 1.7 |
| Swing speed | rpm | 11 |
| Travel speed, high/ low | km/hr | 5.3/ 3.4 |
| Max. digging reach on ground | mm | 9300 |
| Max. digging Depth | mm | 6050 |
| Tail swing radius | mm | 2830 |
| Bucket digging force | kgf. | 15600 |
| Arm crowd force | kgf. | 12500 |
| Bucket Capacity | Cu.M | 1.05GP/ 0.95HD/ 0.87RB/ 1.2 GP/ 1.7 Coal |

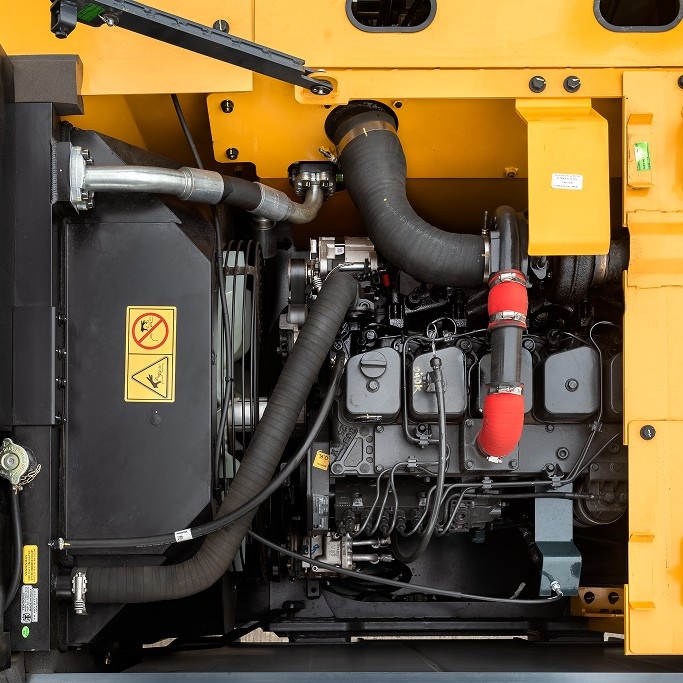

The water-cooled, 4-cycle diesel, 6-cylinder Cummins 6BTAA5.9C engine has a gross power of 148 HP @2000 rpm that not only offers optimized fuel and lube oil consumption but also low noise levels. It delivers outstanding performance even in high-heat, humid and dusty conditions.
Arm regeneration helps to recirculate hydraulic energy from return line to pump supply line for smooth and fast arm operation. It prevents cavitation and enhances performance of machine.
The digital cluster displays key machine information like oil temperature, coolant temperature, and other vital statistics. Optimized performance is achieved by letting operator to choose between three power modes and two work modes and two User Modes.
The Hydraulics and attachments are designed to offer high digging forces.
One touch deceleration switch on top of LH joystick lowers the engine RPM when selected. The saves fuel by regulating pump and engine. Auto Idle function moderates engine RPM to idle state when machine remains idle for 4 sec by enabling MCU to send a signal to engine. This in turn reduces fuel consumption and operation cost.

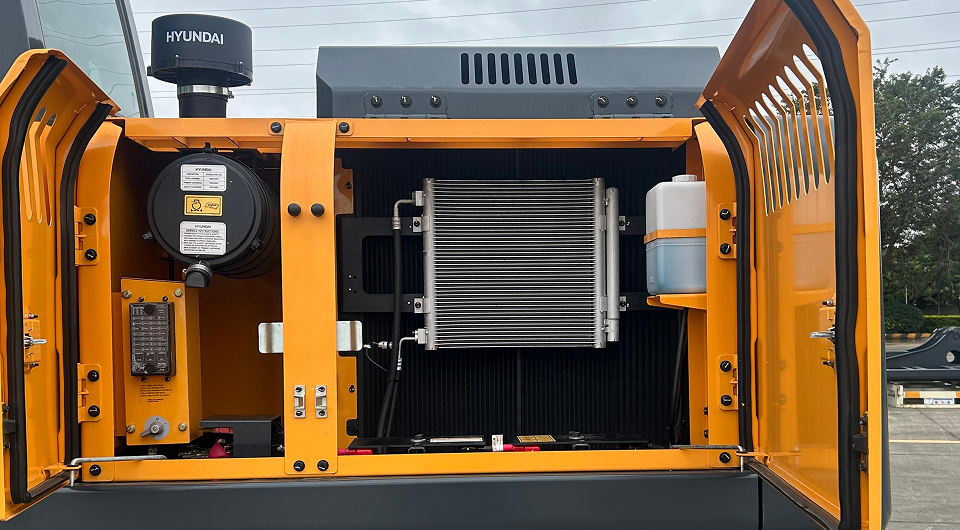

The system cools the air as it passes through the turbocharger. It results in cool, high-density air of bigger mass being pumped to the engine. This helps to achieve deliver more power output per unit of fuel burnt and high fuel efficiency.

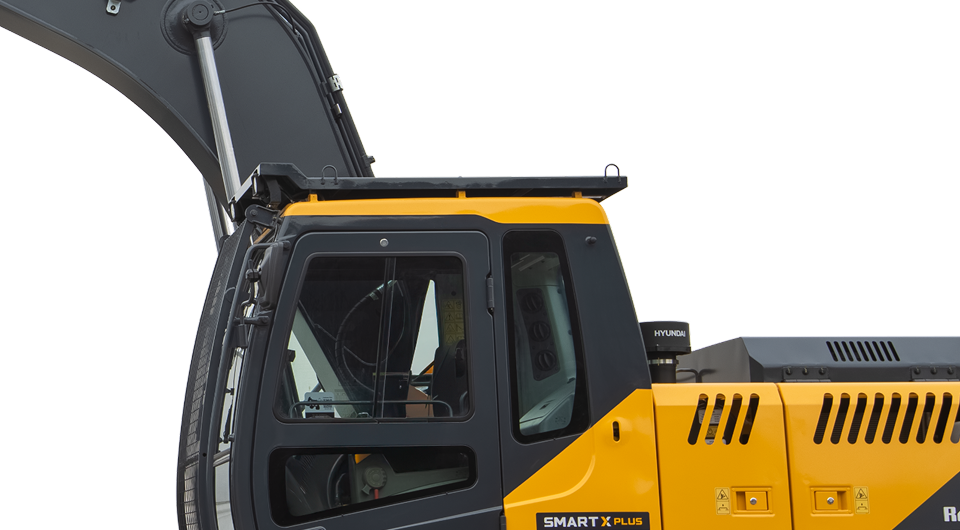

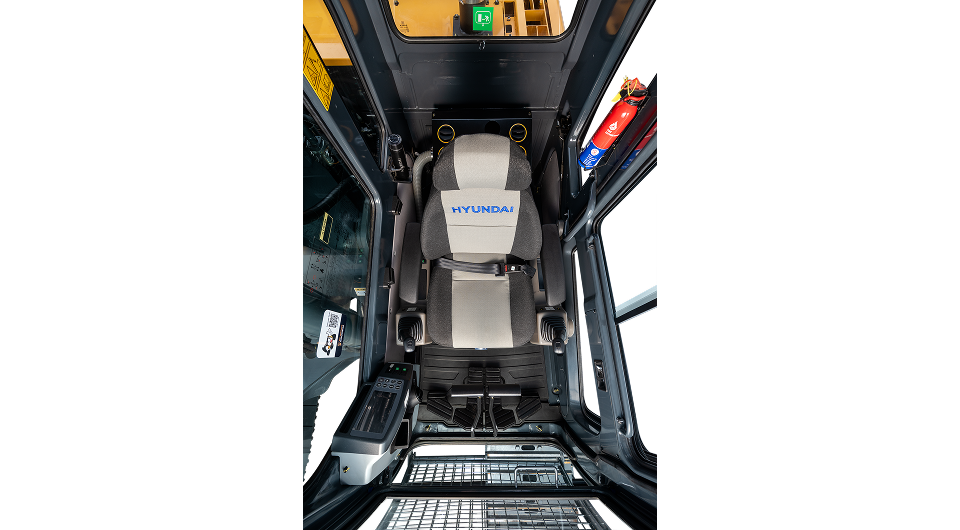

The spacious Air Conditioned cabin creates a very comfortable working environment for the operator. The seat comes with 7 Adjustments including seat height movement. Soft joystick control ensures increased productivity and higher operator efficiency.
Breaker Mode is provided to optimize the energy requirement of Rock breaker and ensures maximum productivity and low fuel consumption.

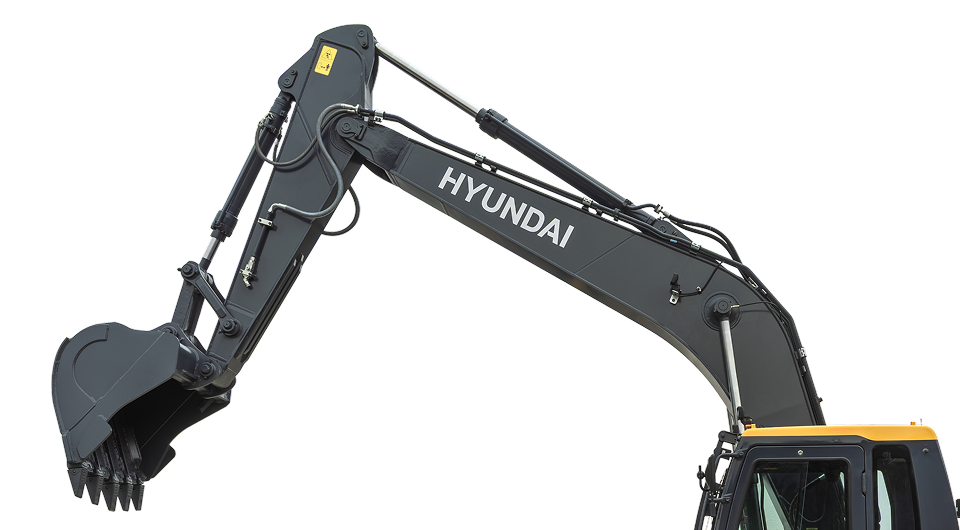

Made with high tensile strength steel, the boom & arm are reinforced with steel bearings and internal baffle plates to maximize impact strength.

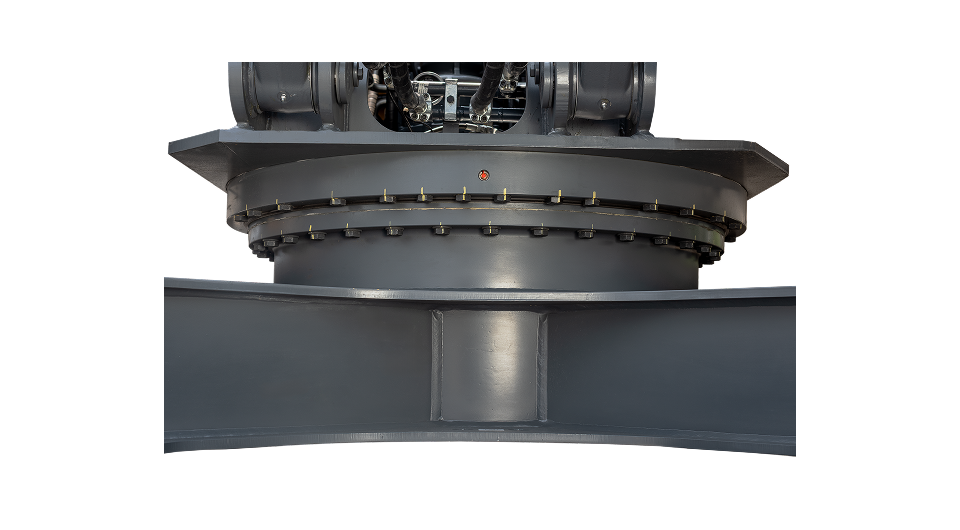

New forged ring body in lower frame enhances the durability, structural integrity and increases the machine life.

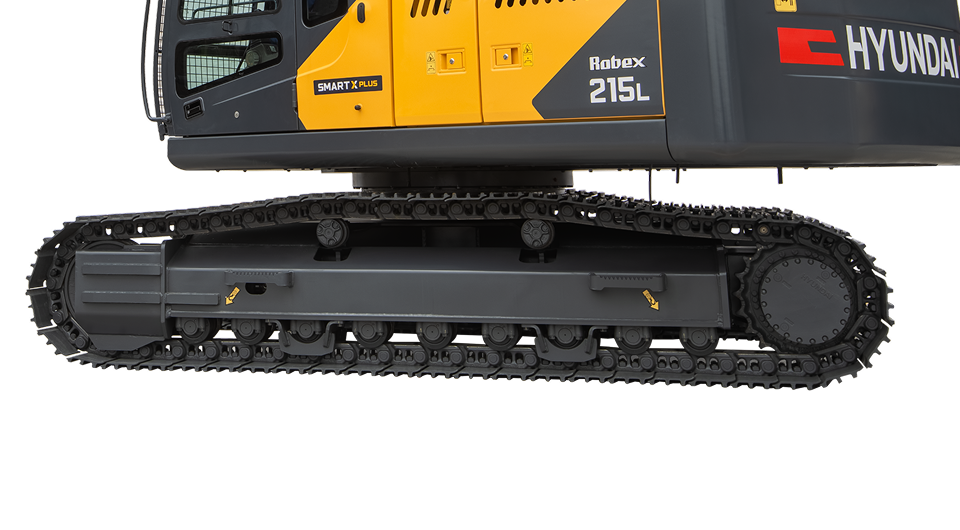

Side Member reinforcement protects the idler from any damage in tough terrains. A heavy-duty track shoe provides better stability and durability on harsh terrains.

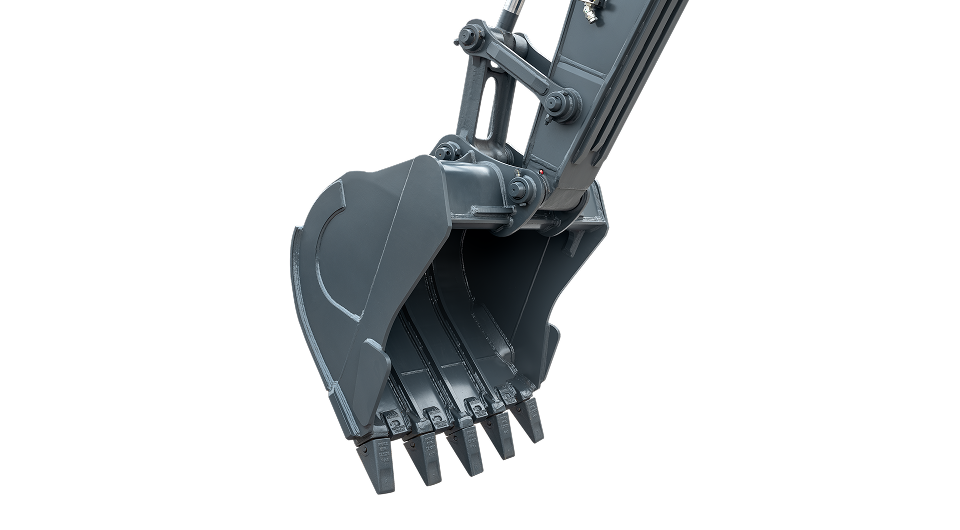

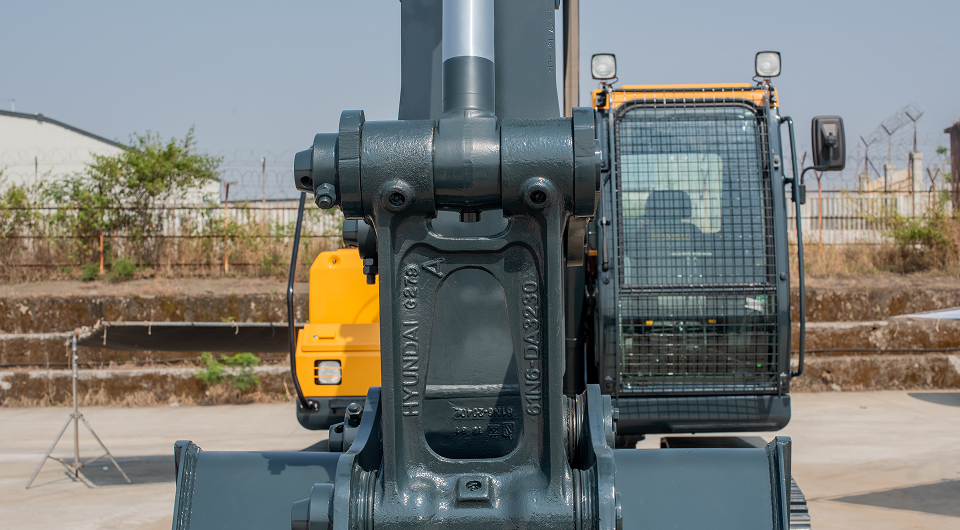

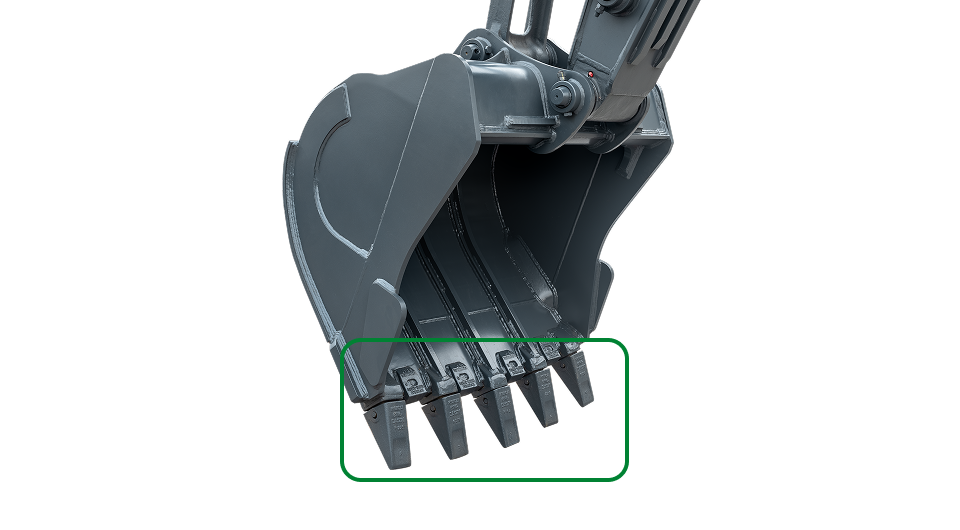

Control link is casted in one-piece design. The bucket linkages are reinforced to ensure high durability and high digging forces.
This feature monitors coolant temperature and automatically lowers engine speed if it overheats, thereby preventing premature failure of the machine.
The Counterbalance Valve prevents the machine from rolling down on steep slopes by applying hydrostatic braking. The Holding Valve keeps attachments locked and prevents them from drifting due to gravity during prolonged overhanging.
This feature prevents the starter from restarting during engine operation if the operator accidently turns on the start key. Thus preventing accidental damage to the engine.
Warning lamps are provided in the display cluster to alert the operator about hydraulic oil temperature, engine coolant temperature, etc. So that safe levels of the respective components can be maintained easily.
