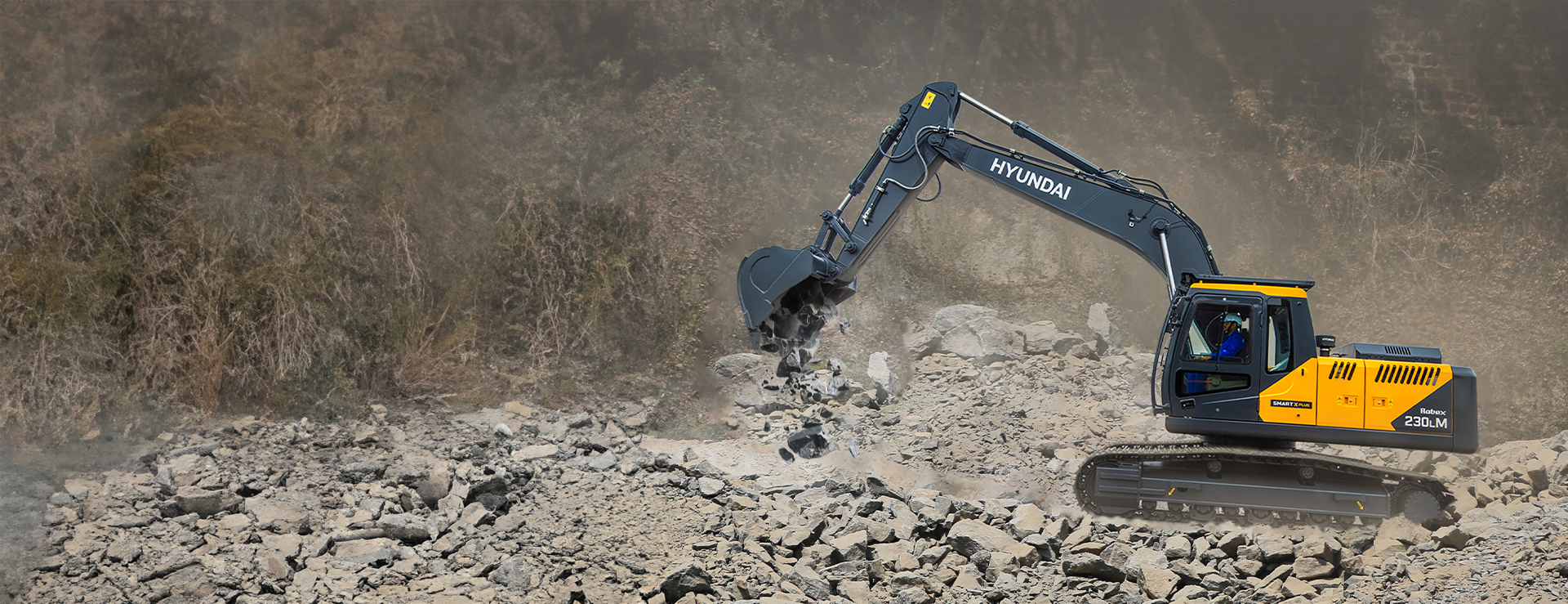

In environments where stone, hard overburden, and quarry loads push machines to structural limits, the R230LM SMART X PLUS answers with a heavier stance, reinforced build, and stronger digging geometry. Retaining the efficient high-power engine setup, it raises its game with greater mass balance, larger bucket options, and hydraulics tuned for sustained rock-handling cycles.
The SMART X PLUS updates add advanced electro-hydraulic refinements for better load sharing, a feature-rich operator cluster with customizable modes, and strengthened wear zones built to survive abrasive mining conditions. A more rugged undercarriage, thicker linkages, and improved sealing ensure prolonged uptime in dusty, high-impact sites.
For mining contractors, stone yards, and quarry operators seeking dependable cycle strength with lower cost variability, the R230LM stands out as a tough, productivity-focused investment in the mid-mining class.
| EQUIPMENT | UNIT | R230LM SMART X PLUS |
|---|---|---|
| Engine Model | Cummins 6BTAA-5.9C | |
| Gross Power (HP) | HP @ rpm | 148 @ 2000 |
| Operating Weight | Kgs | 23300 |
| Bucket Range | cu.m | 0.95 - 1.2 |
| Swing speed | rpm | 11 |
| Travel speed, high/ low | km/hr | 5.3/ 3.4 |
| Max. digging reach on ground | mm | 9311 |
| Max. digging Depth | mm | 6222 |
| Tail swing radius | mm | 2845 |
| Bucket digging force | kgf. | 16000 |
| Arm crowd force | kgf. | 12600 |
| Bucket Capacity | Cu.M | 1.2GP/ 1.05GP/ 1.2 HD/ 1.1HD/ 0.95 HD/ 0.95 Scoop |
The digital cluster displays key machine information like oil temperature, coolant temperature, and other vital statistics. Optimized performance is achieved by letting operator to choose between three power modes and two work modes and two User Modes.

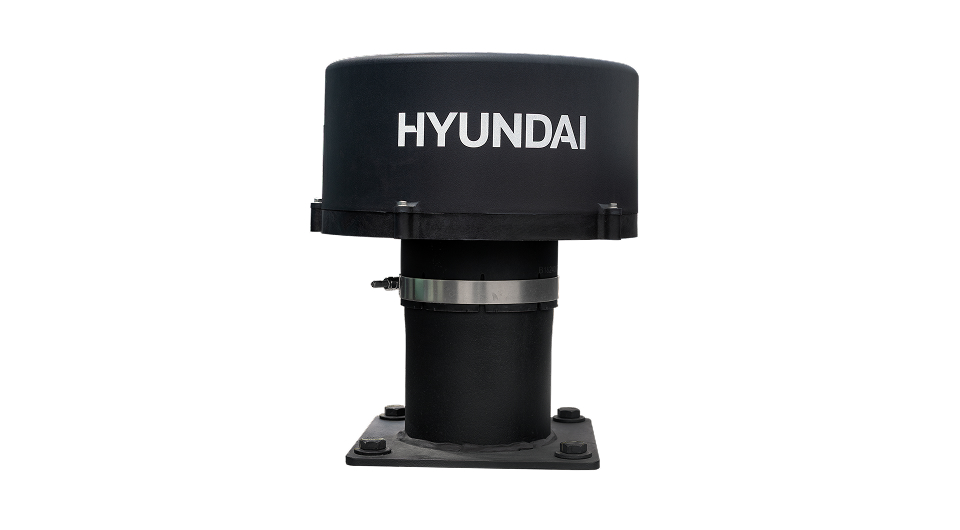

A cyclonic air precleaner removes large dust particles from the air before it enters the main air filter, reducing filter clogging. This improves engine performance and extends filter life, leading to better fuel efficiency and reduced maintenance

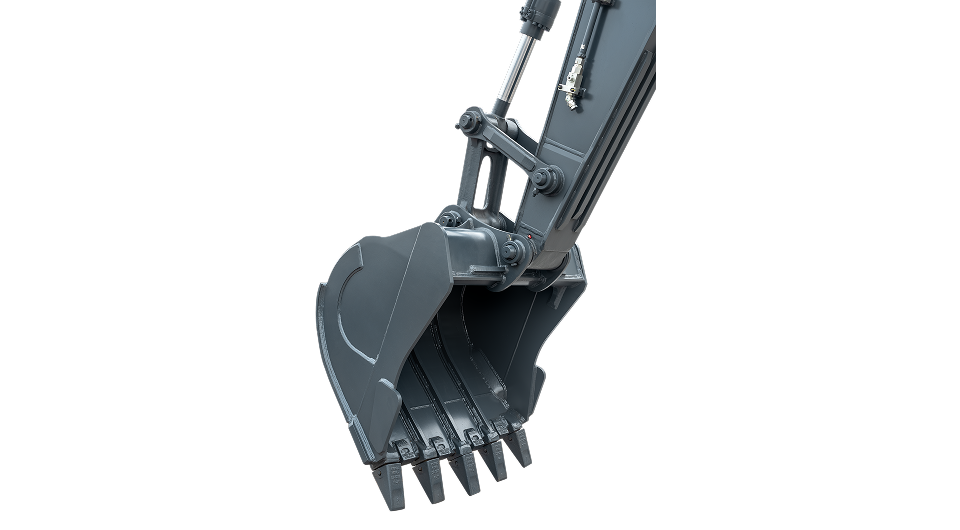

The Hydraulics and attachments are designed to offer high digging forces.

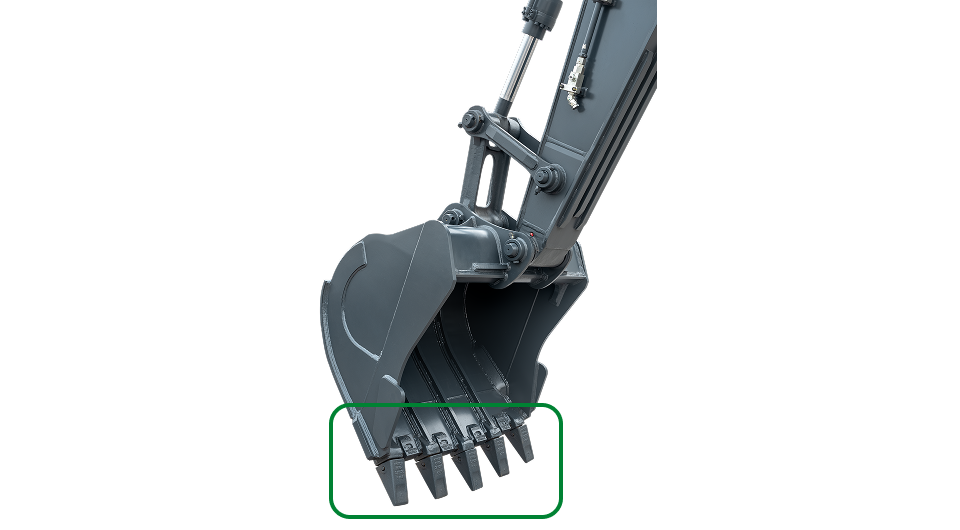

It offers a wide range of buckets tailored for various applications, ensuring optimal performance, durability, and efficiency for every job. (Highlight Stub adaptor in bucket image)
When a component is not in operational, a control lever stroke maintains high standby pressure of hydraulic oil in the hydraulic hoses rather than sending it back to the main control valve. It not only results in faster response time of the hydraulic component, but also fuel savings.

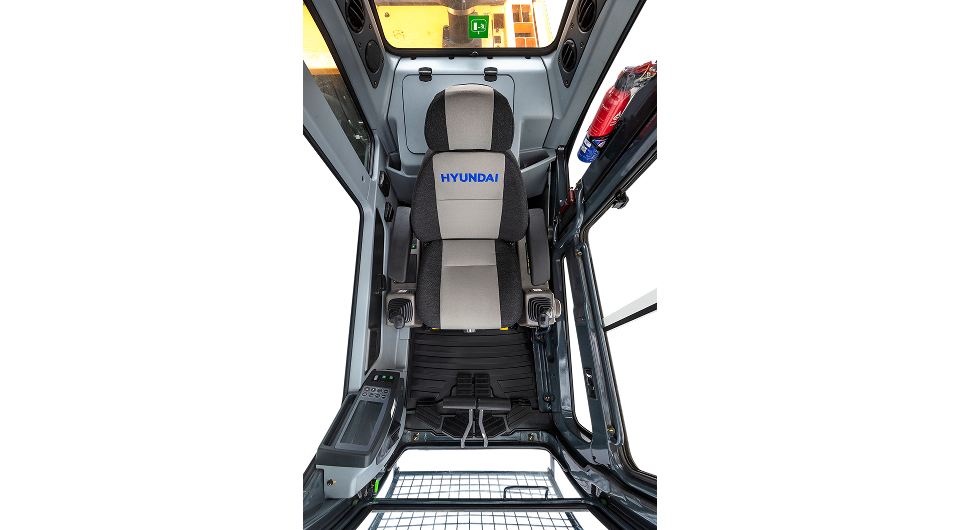

The upgraded cabin features enhanced cooling capacity and efficiency with a new HVAC system, ensuring maximum comfort in all weather conditions. Premium interior with a Bluetooth equipped FM Radio, fully adjustable operator seat provides superior ergonomics and reduced fatigue/stress, delivering a more productive and operator-friendly environment.
The system cools the air as it passes through the turbocharger. It results in cool, high-density air of bigger mass being pumped to the engine. This helps to achieve deliver more power output per unit of fuel burnt and high fuel efficiency.
The auto-piloted swing priority increases hydraulic oil flow to swing circuit in combined operation, which leads to faster swing cycle for more productivity & profitability.

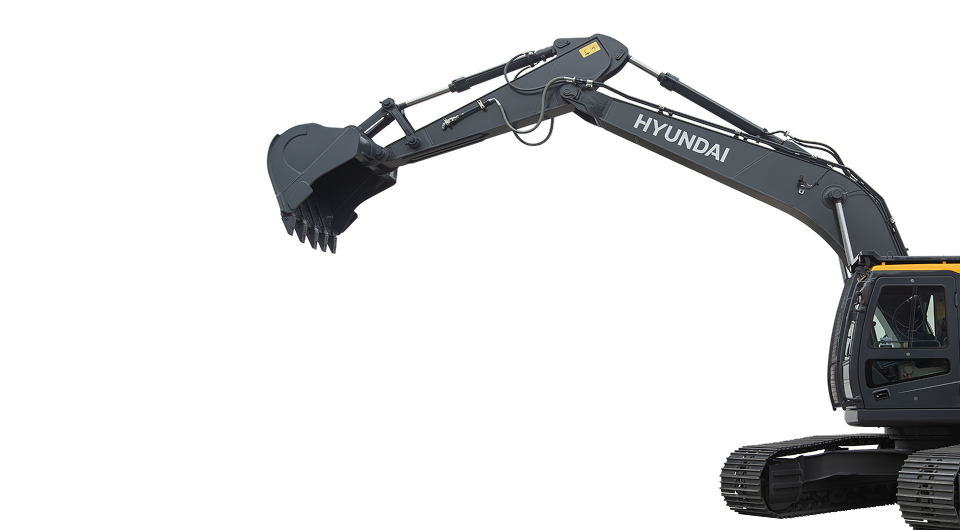

New improved boom profile for better strength. Use of dimple bushes and polymer shims to enhance durability in high-stress joint areas. The dimple bush design promotes better grease retention, improving lubrication and reducing friction over time. Polymer shims provide enhanced resistance to wear and corrosion, helping maintain tight clearances and extending the service life of the boom and arm components. Both Boom & Arm made with high tensile strength steel and are reinforced with steel bearings and internal baffle plates to maximize impact strength.

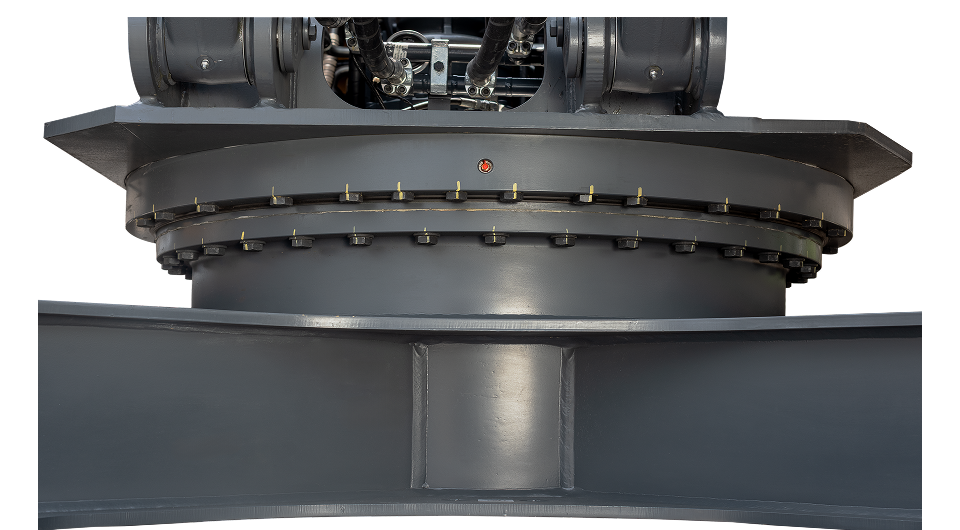

New forged ring body in lower frame enhances the durability, structural integrity and increases the machine life.

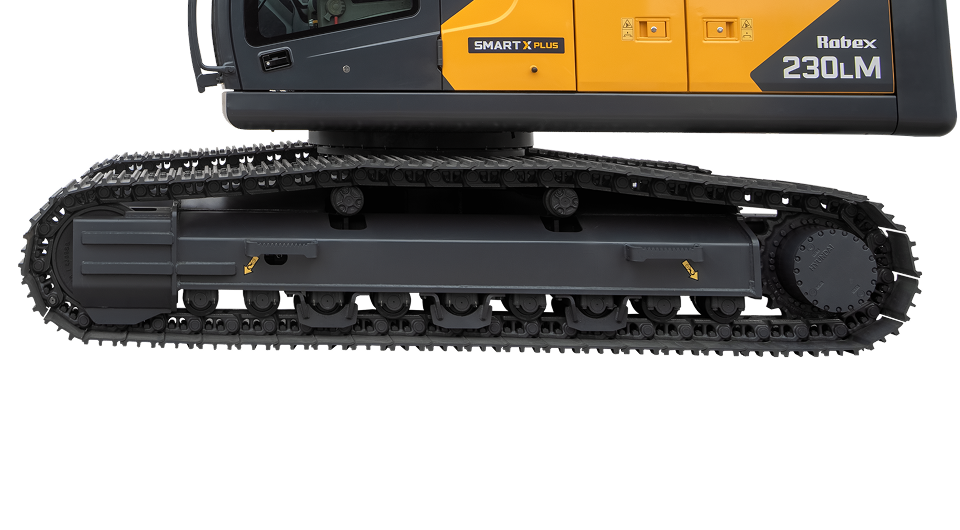

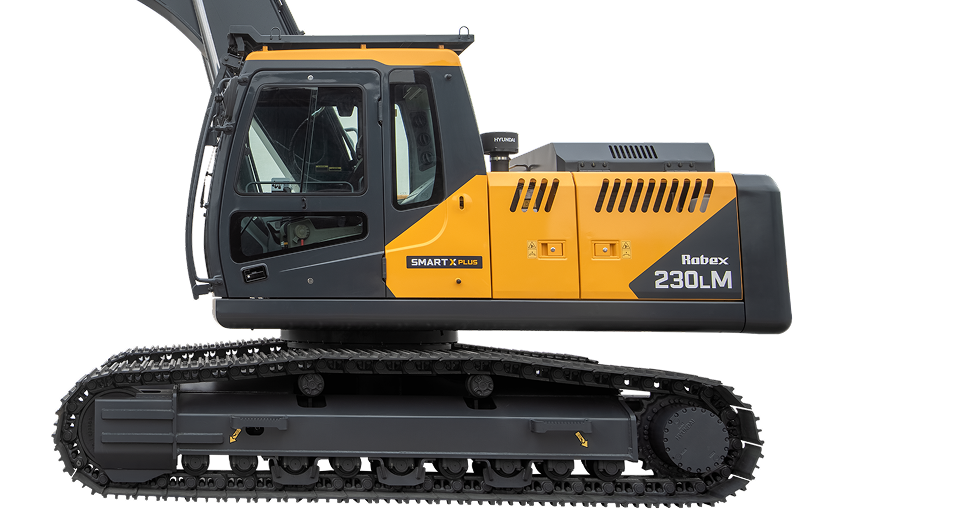

Side Member reinforcement protects the idler from any damage in tough terrains. A heavy-duty track shoe provides better stability and durability on harsh terrains.

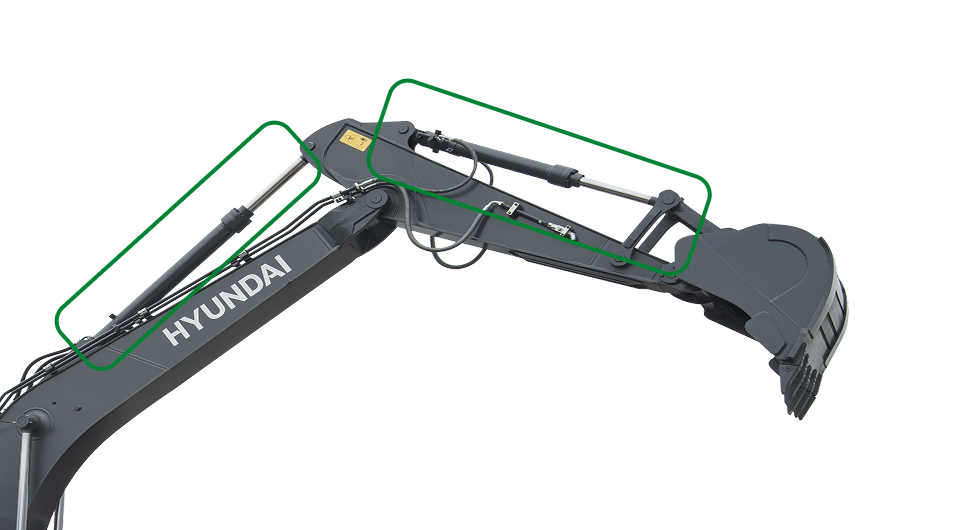

A bigger rod provides more strength for digging as well as increases component life.

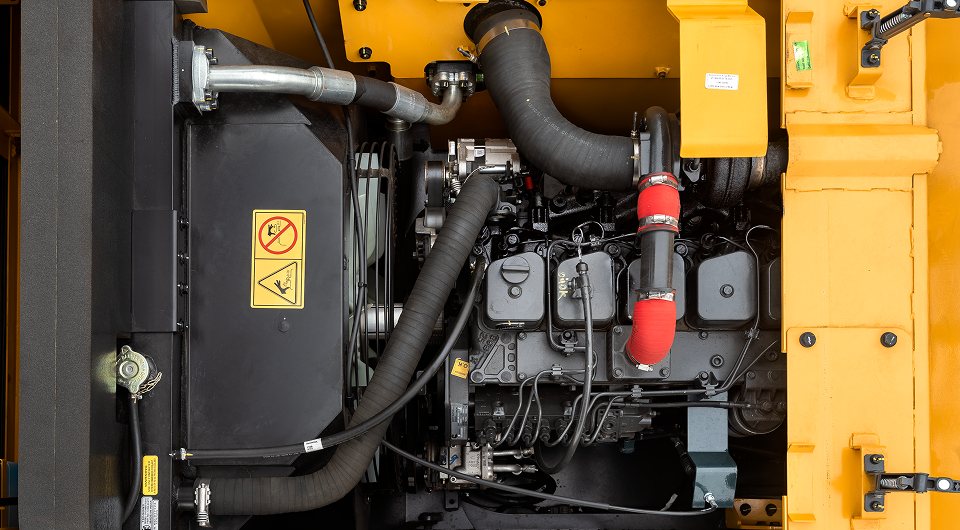

This feature monitors coolant temperature and automatically lowers engine speed if it overheats, preventing premature failure of the machine.

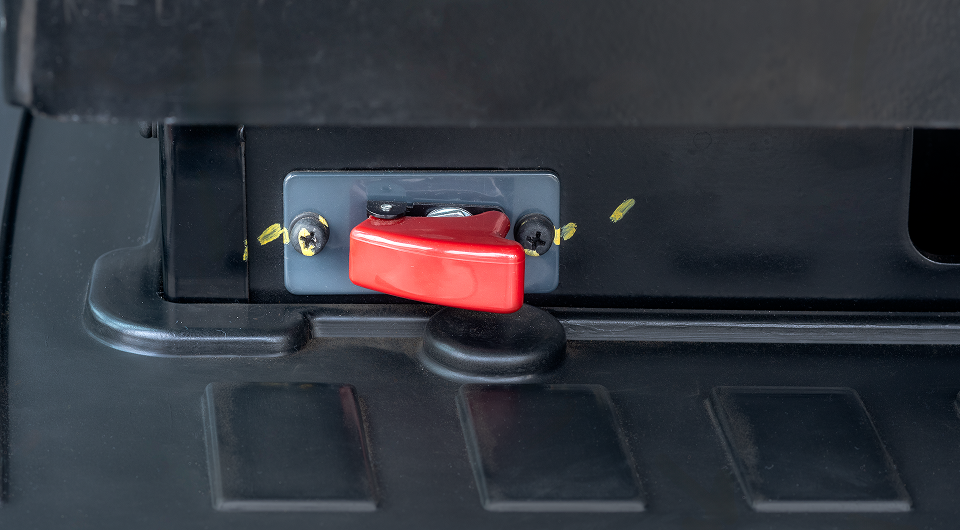

The emergency shutdown switch enhances operator safety by providing a quick and reliable way to instantly stop the machine during emergency situations.

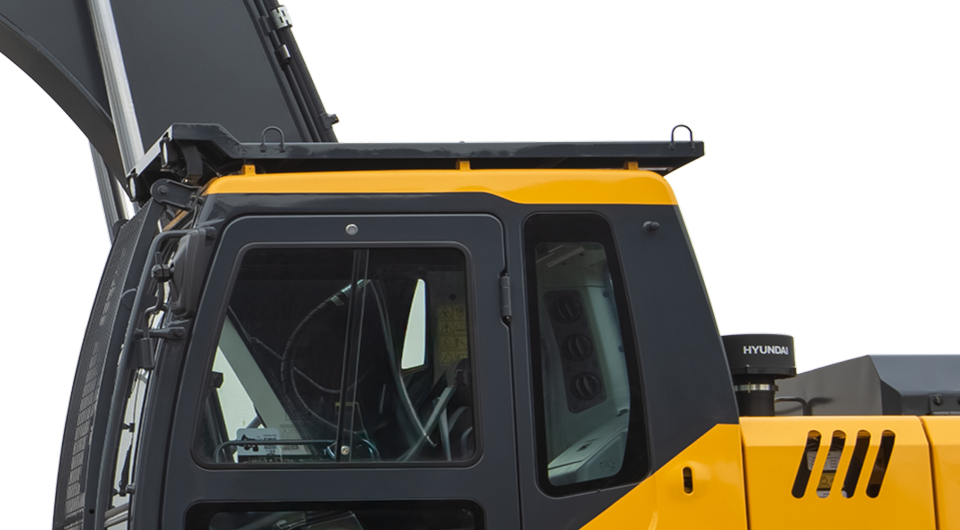

Cabin top guard protects the operator from falling objects, enhancing safety in tough working environments.

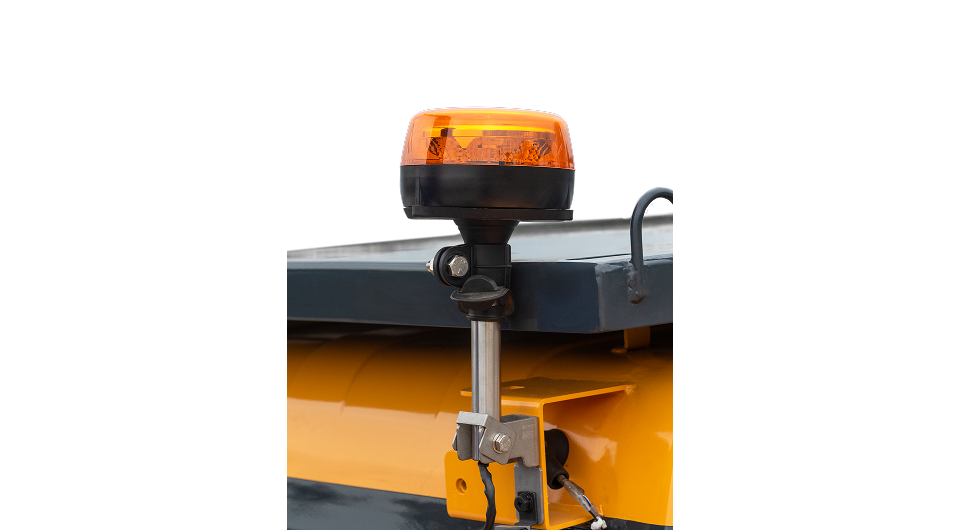

Beacon lamp enhances site safety by providing high-visibility warning signals during machine operation.
The HD Construction Equipment R230LM mining excavator is built with reinforced structures and advanced hydraulics, making it suitable for high-load quarry and mining operations.
Power: ~148 HP Operating weight: ~23,300 kg Bucket capacity: 0.87–1.7 m³
It is suitable for mining, quarrying, infrastructure, and material handling applications.
