This machine is specially designed for General Construction, Infrastructure Projects, and Rental/Hiring applications. The R210E comes with the proven Cummins 6BT5.9C engine, combined with Hyundai’s in-house major components and a new advanced hydraulic system.
This results in excellent digging forces, smoother operations, and efficient cycle times It comes with a standard 5.7m boom and 2.2m arm, along with multiple bucket options. Also introduced a new 0.92 GP flat-bottom bucket perfectly suited for canal work and earthwork applications
| EQUIPMENT | UNIT | R210E |
|---|---|---|
| Engine Model | Cummins 6BT5.9C | |
| Gross Power (HP) | HP @ rpm | 140 @ 2000 |
| Operating Weight | Kgs | 20245-20395 |
| Bucket Range | Cu.M | 0.87-0.92 |
| Swing speed | rpm | 11 |
| Travel speed, high/ low | km/hr | 5.3/ 3.4 |
| Max. digging reach on ground | mm | 9164 |
| Max. digging Depth | mm | 5780 |
| Tail swing radius | mm | 2845 |
| Bucket digging force | kgf. | 14600 |
| Arm crowd force | kgf. | 13200 |
| Bucket Capacity | Cu.M | 0.92GP / 0.87 HD |

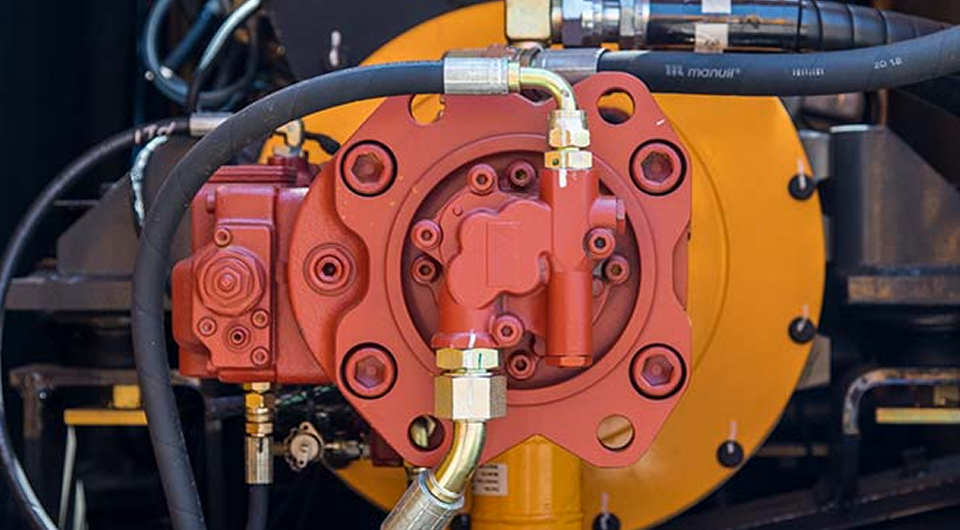

To ensure best productivity, the Variable Displacement Axial Piston type pump with electro hydraulic control function provides a wide range of flow at various workloads. The open center design of the main control valve provides fast synchronization between joystick and hydraulic components. Thus increasing speed and smoothness of operations.
The digital cluster displays key machine information like oil temperature, coolant temperature, and other vital statistics. Optimised performance is achieved by letting operator to choose between three power modes and two work modes and two User Modes.

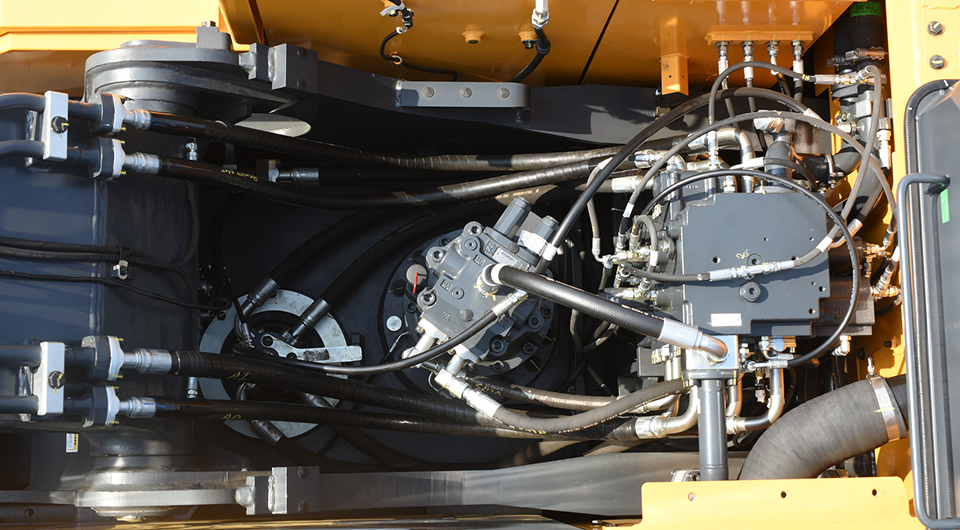

When a component is unoperational, a control lever stroke maintains high standby pressure of hydraulic oil in the hydraulic hoses rather than sending it back to the main control valve. It not only results in faster response time of the hydraulic component, but also fuel savings.
Excellent digging forces for efficient and powerful excavation. Designed to handle tough soil conditions with ease and reliability

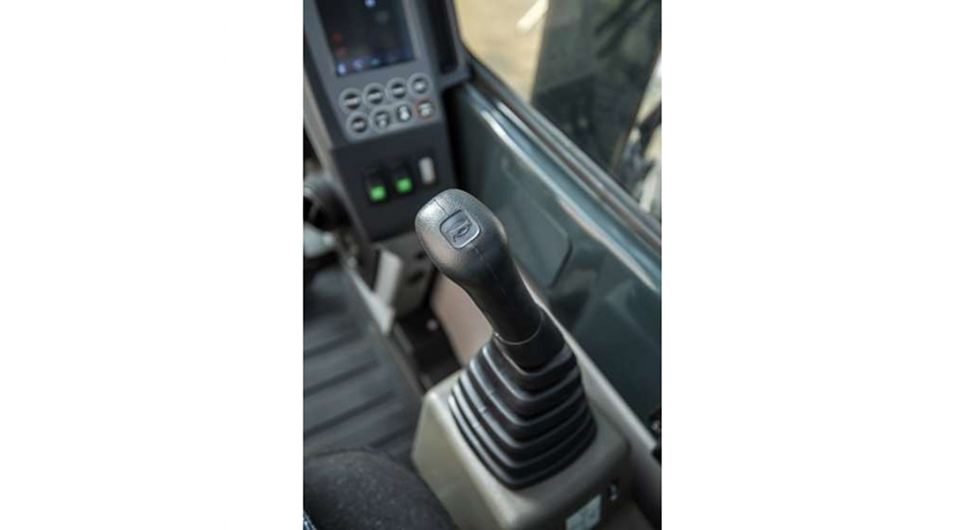

One touch deceleration switch on top of LH joystick lowers the engine RPM when selected. The saves fuel by regulating pump and engine. Auto Idle function moderate’s engine RPM to idle state when machine remains idle for 4 sec by enabling MCU to send a signal to engine. This in turn reduces fuel consumption and operation cost.
The auto-piloted swing priority increases hydraulic oil flow to swing circuit in combined operation, which leads to faster swing cycle for more productivity & profitability.

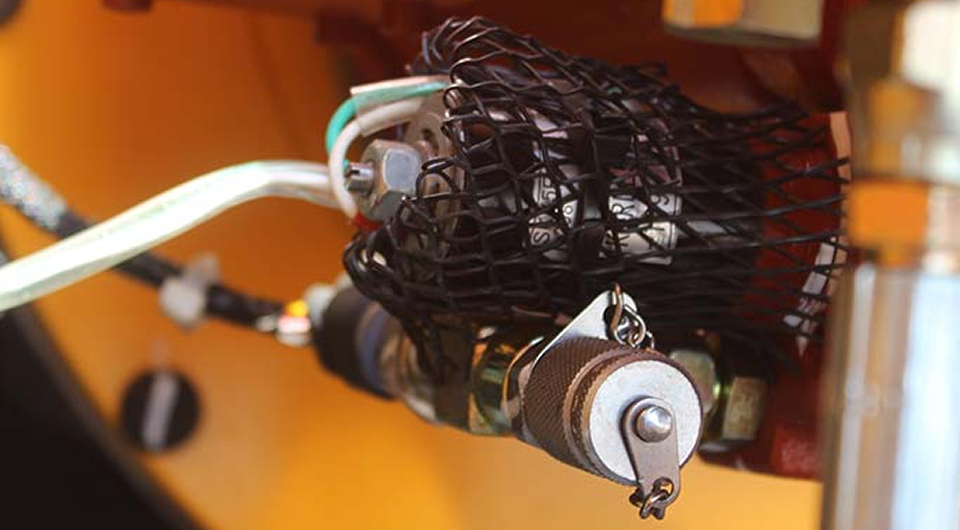

The sensors in this kit monitor undue loads and send signals to the Main Control Valve to cut down unnecessary fuel consumption. It helps to increase fuel efficiency.
The R210E excavator is equipped with features designed to enhance operational convenience. A removable floor mat for easy cleaning and improved maintenance, helping to keep the operator area neat and well-maintained. The integrated Bluetooth FM radio provides added functionality for communication and entertainment. LED lamps offer improved visibility in low-light conditions, supporting safer and more efficient operations.
Boom profile for better strength. Use of dimple bushes and polymer shims to enhance durability in high-stress joint areas. The dimple bush design promotes better grease retention, improving lubrication and reducing friction over time. Polymer shims provide enhanced resistance to wear and corrosion, helping maintain tight clearances and extending the service life of the boom and arm components. Both Boom & Arm made with high tensile strength steel and are reinforced with steel bearings and internal baffle plates to maximize impact strength.

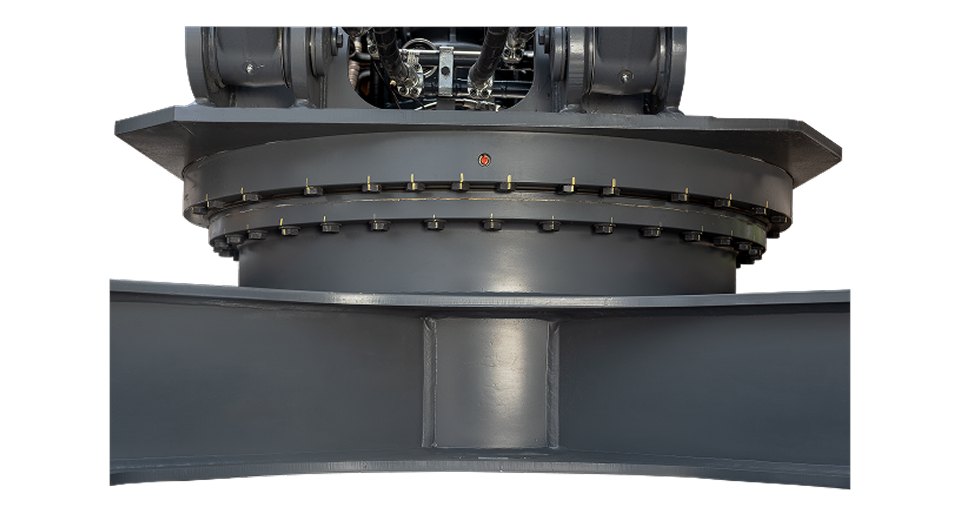

New forged ring body in lower frame enhances the durability, structural integrity and increases the machine life.

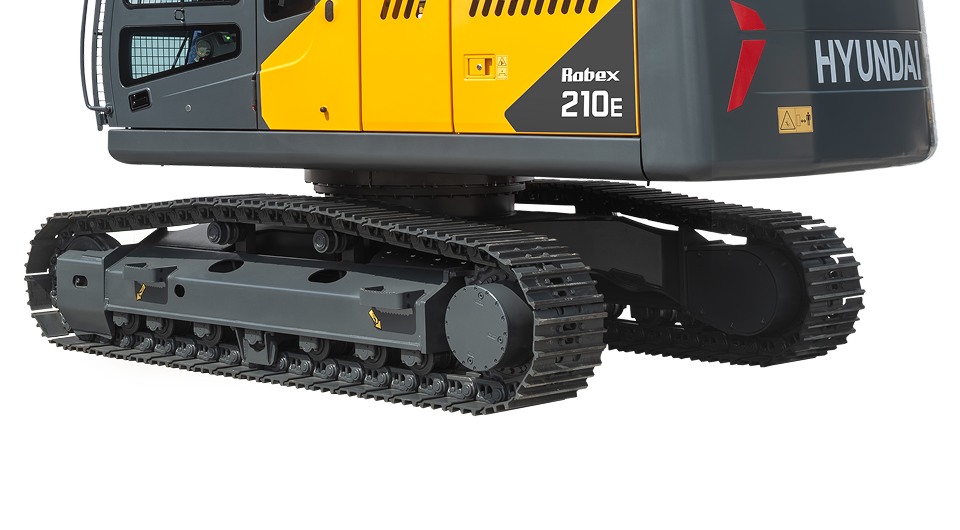

Rugged undercarriage designed for long-term durability and strength

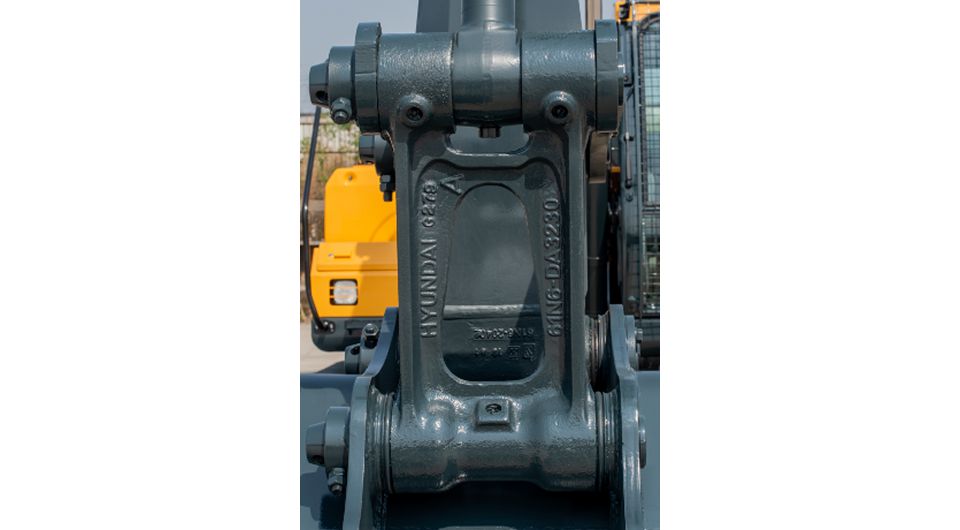

Control link is casted in one-piece design. The bucket linkages are reinforced to ensure high durability and high digging forces.

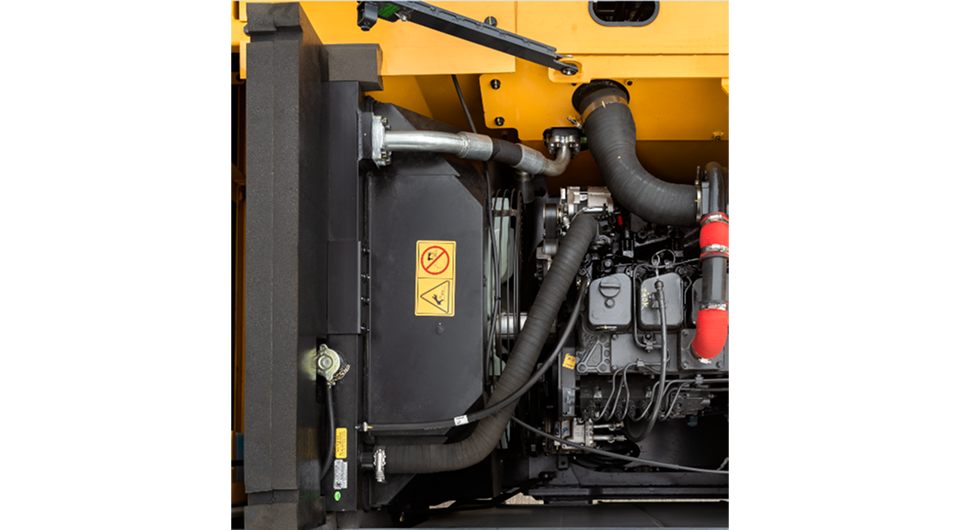

This feature monitors coolant temperature and automatically lowers engine speed if it overheats, thereby preventing premature failure of the machine.

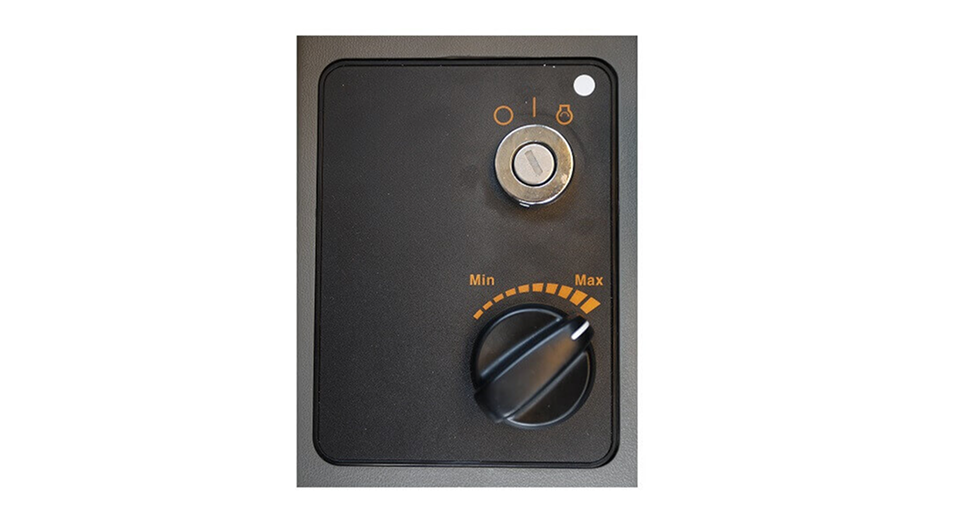

This feature prevents the starter from restarting during engine operation if the operator accidently turns on the start key. Thus preventing accidental damage to the engine.

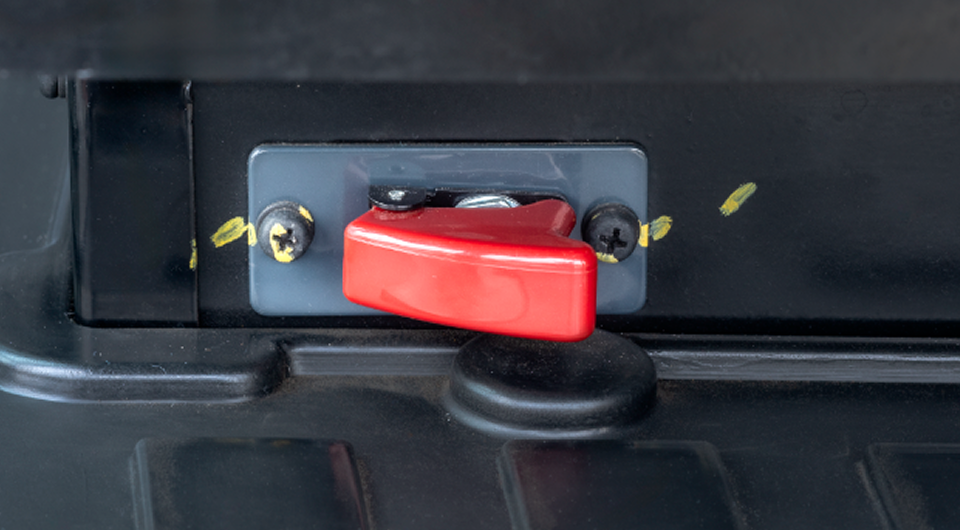

The emergency shutdown switch enhances operator safety by providing a quick and reliable way to instantly stop the machine during emergency situations.
The tank cover on the hydraulic excavator keeps the fuel tank safe from hitting against any external objects during excavation operations
