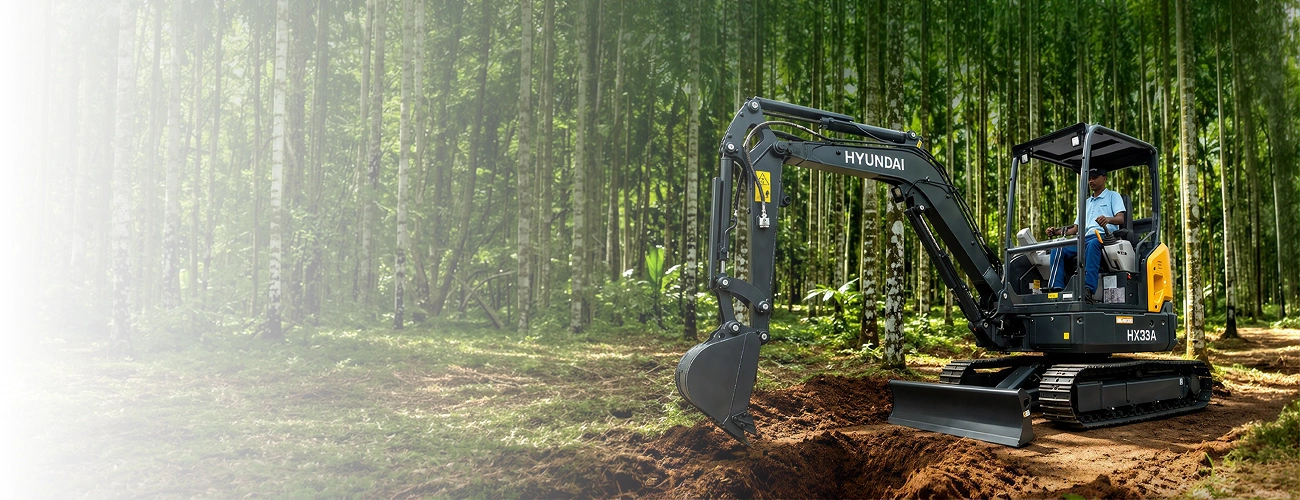

Built for operators who need more digging power without losing compact-class agility, the Hyundai HX33A is one of the most capable mini excavators in its segment. This machine is powered by a fuel-efficient Kubota D1703, Tier-4 engine, ensuring superior performance and environmental sustainability. Operating comforts are taken to new heights, providing operators with an ergonomic and user-friendly experience.
As one of the best mini excavators in India, this machine features a 5" LCD Display for operator convenience, Kubota D1703, Tier-4 engine for smooth operations, wide boom swing angle for efficient work in tight spaces, and rugged upper & lower frame for durable performance. Designed for versatile applications like agriculture, land development, urban infrastructure, and more, this 3.9-ton mini excavator is the ideal solution for delivering optimum performance and low maintenance cost.
The HX33A engine is a Kubota D1703, Tier-4 unit rated at 25.2 PS, tuned for low noise, low HX33A fuel consumption and reduced maintenance cost. For the current Hyundai HX33A price, request a quote or contact your nearest HD CE India dealer.
| Equipment | UNIT | HX33A |
|---|---|---|
| Engine Model | Kubota D1703 | |
| Gross Power (HP) | PS @ rpm | 25.2 PS |
| Operating Weight | Kgs | 3880 Kg |
| Bucket Range | Cu.M | 0.11 m3 GP |
| Arm Length | mm | 1300 |
| Swing speed | rpm | 9.4 |
| Travel speed, high/ low | km/hr | 4.4/ 2.6 |
| Max. digging reach on ground | mm | 5165 |
| Max. digging Depth | mm | 2967 |
| Tail swing radius | mm | 900 |
| Bucket digging force | kgf. | 3281 |
| Arm crowd force | kgf. | 2025 |

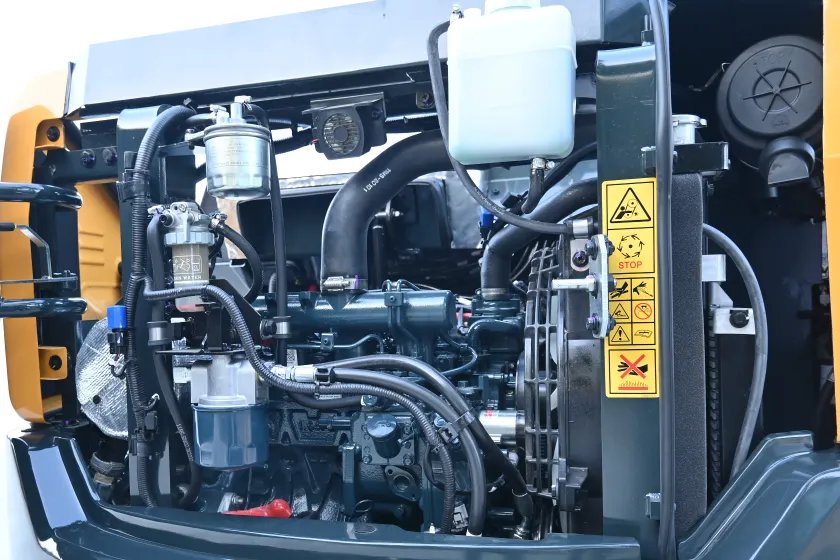

The Kubota D1703, Tier-4 engine is built with a gross power of 25.2 PS to provide optimum power, high fuel efficiency, low noise and reduced maintenance cost.
Variable displacement piston pumps with open centre hydraulic system for fast synchronisation between the joystick and Main Control Valve, resulting in faster response & smooth operation.

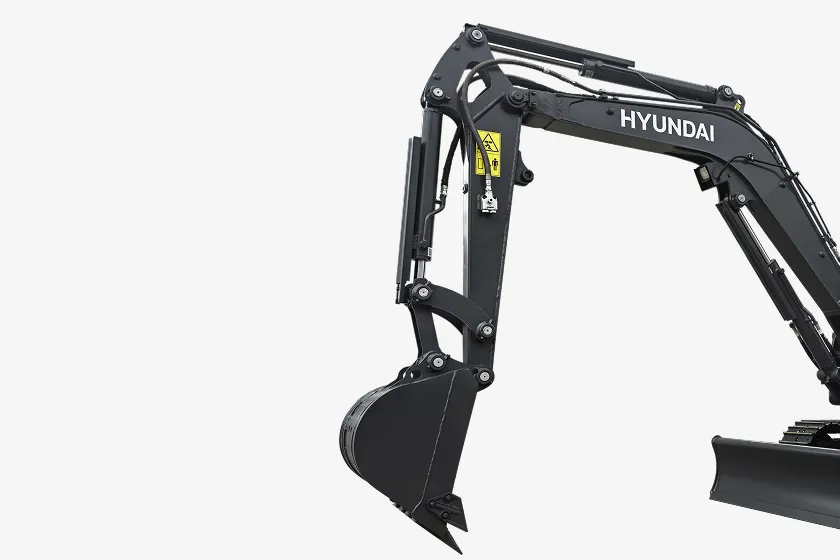

The Hydraulics and attachments are designed to offer high digging forces of 3281 kgf at the bucket and 2025 kgf at the arm, for high productivity.

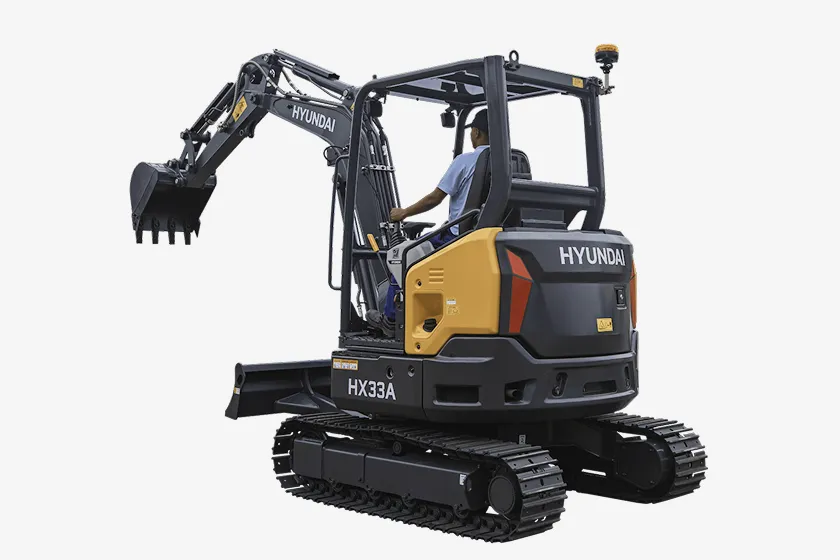

Swing speed of 9.4 rpm with axial piston swing motor and automatic brake. Reduces cycle time in truck loading and repetitive trenching work.

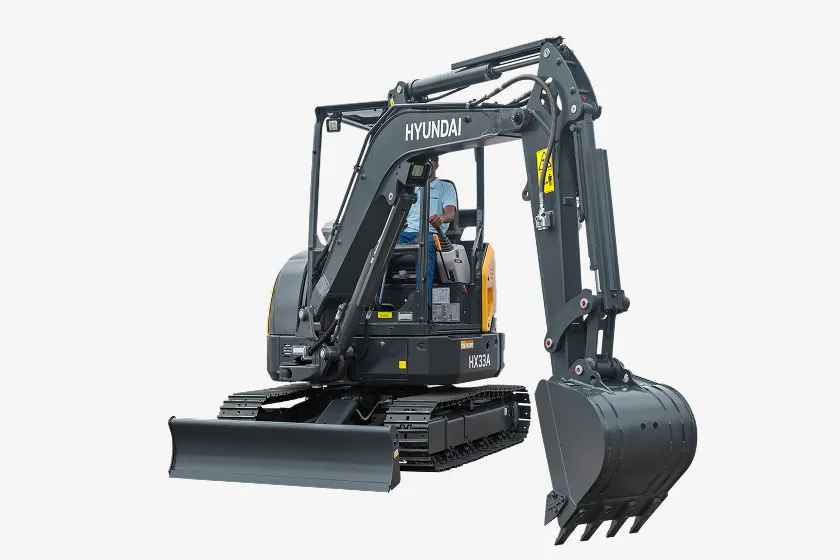

This function provides wider boom swing angle for efficient work in congested residential and urban areas.

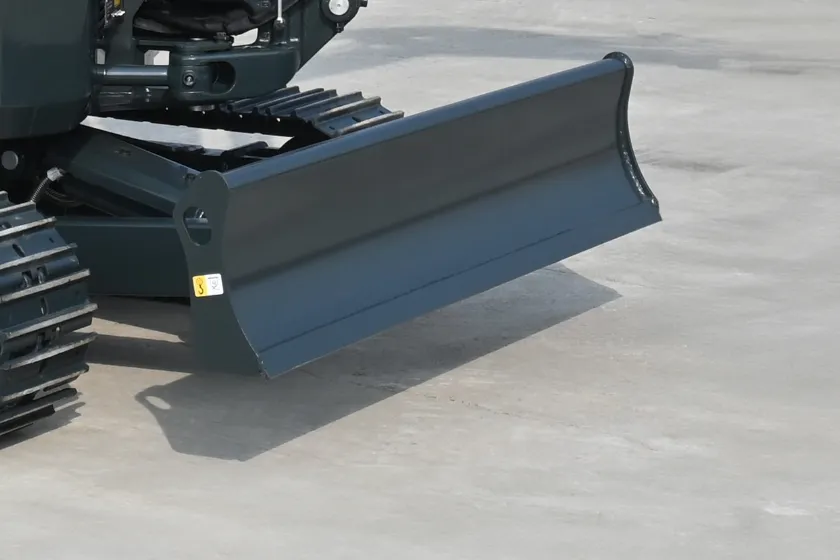

Dozer height automatically adjusted by turn ON Dozer Float function. Enable smooth drive over ground surface that ensures precise finish.

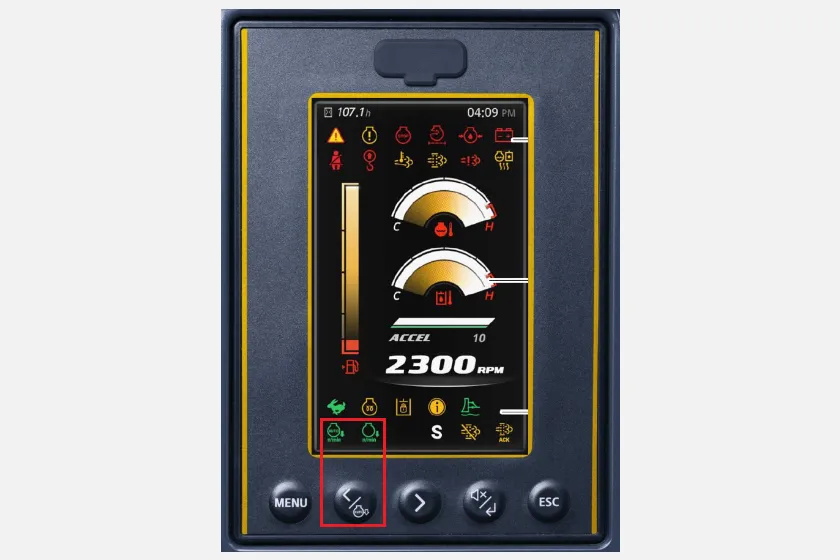

Auto engine idle feature reduces the engine RPM when equipment is not in use. This helps in optimizing fuel efficiency.
This feature automatically shifts high to low travel speed when the machine is travelling upwards on gradient, to increase travel torque. Improves overall work efficiency.
The operator cabin is smartly designed to increase operator's productivity. Easier joystick controls and smartly placed pedal positions enable convenient operation.

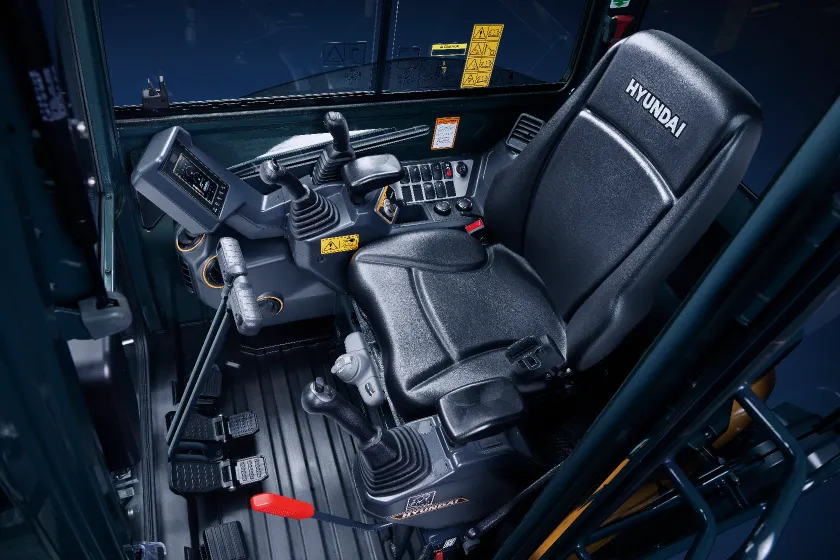

The multi adjustment seat lets the operator set the position that suits them, improving comfort and reducing fatigue across long shifts.

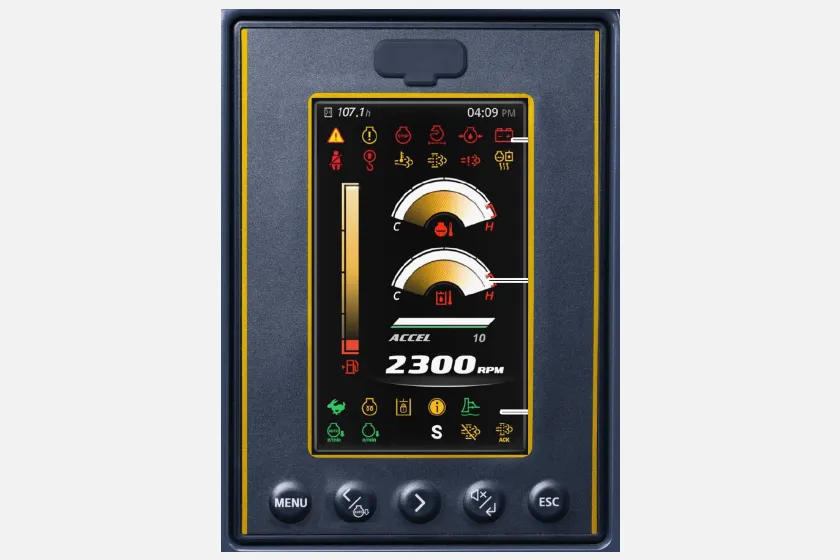

New 5" LCD display improves operator convenience. It displays key information like fuel level, hour meter, engine oil pressure, battery, engine rpm, engine coolant temperature and warning indicators. Maintenance management features help in better upkeep of machines. Diagnostic Trouble Codes (DTC) helps in faster troubleshooting.

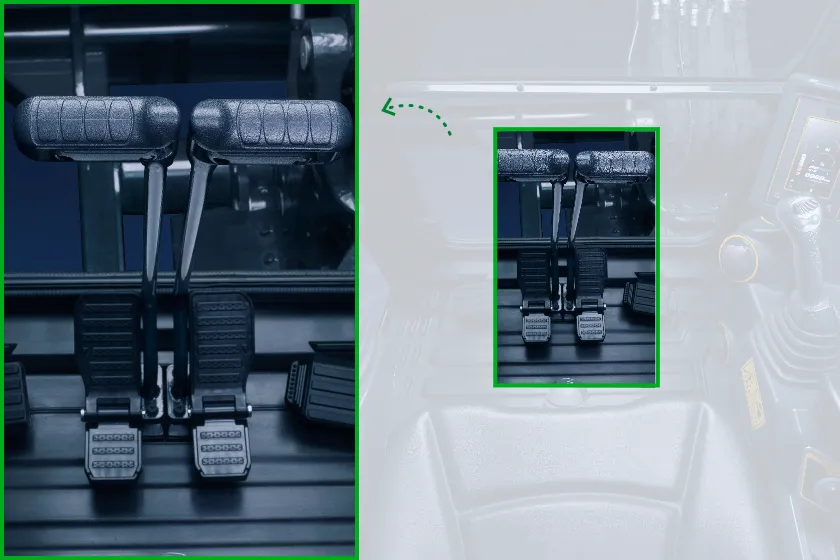

All pedals are foldable for additional floor space and come with rubber covers for better grip. Footrest, attachment pedal, left and right travel pedals and boom swing pedal are arranged for convenient access.

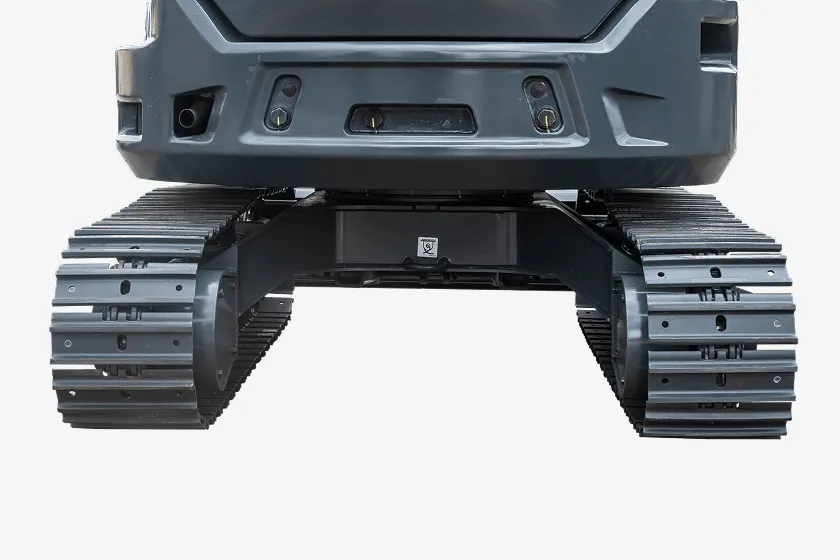

Low stress, high strength steel is integrally welded to form a stronger, more durable upper and lower frame. Structural Integrity tested by Finite Element Analysis.

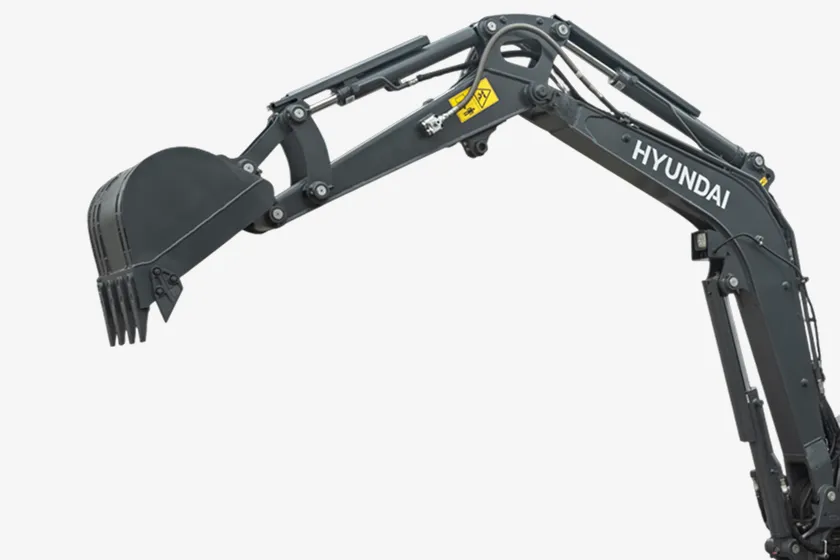

Made with high tensile strength steel and with advanced welding techniques, the boom & arm are reinforced with steel bearings to maximize impact strength & longevity.

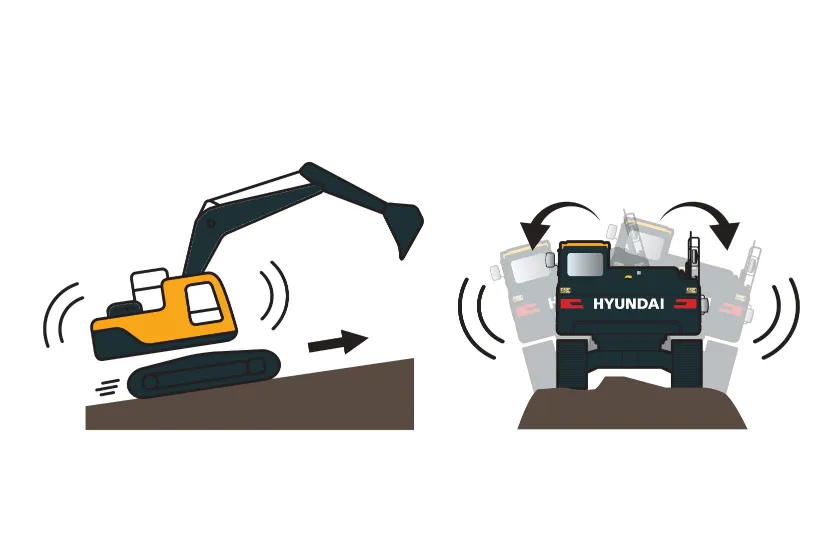

The Cabin of HX33A meets ROPS standard under ISO certification. Integrally welded low-stress & high strength steel and tested by FEM analysis and long-term durability tests.

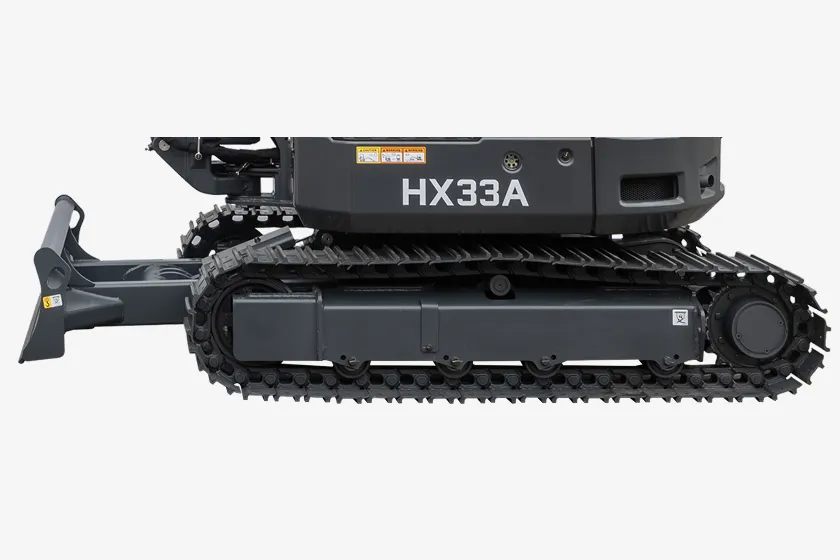

X-leg type centre frame integrally welded with reinforced box-section track frames. Lubricated rollers, track adjusters with shock absorbing springs and 300mm steel shoes for long life on rough terrain.

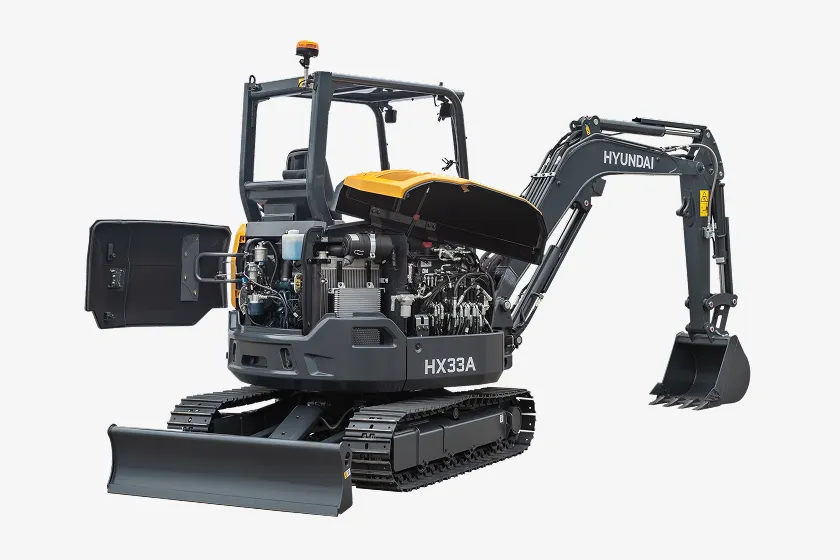

The cowl is fully open type giving easy access to Engine & MCV. All daily checks, filters and centralized grease fittings at ground level for easy checks & maintenance.

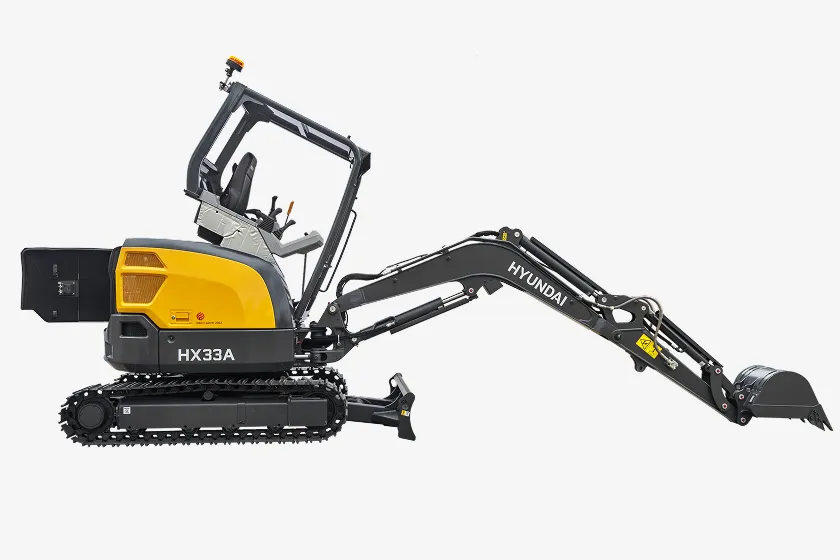

The new HX33A has TILT Cabin as standard feature for easy access to components like Swing Motor. This improves serviceability and reduces down time.

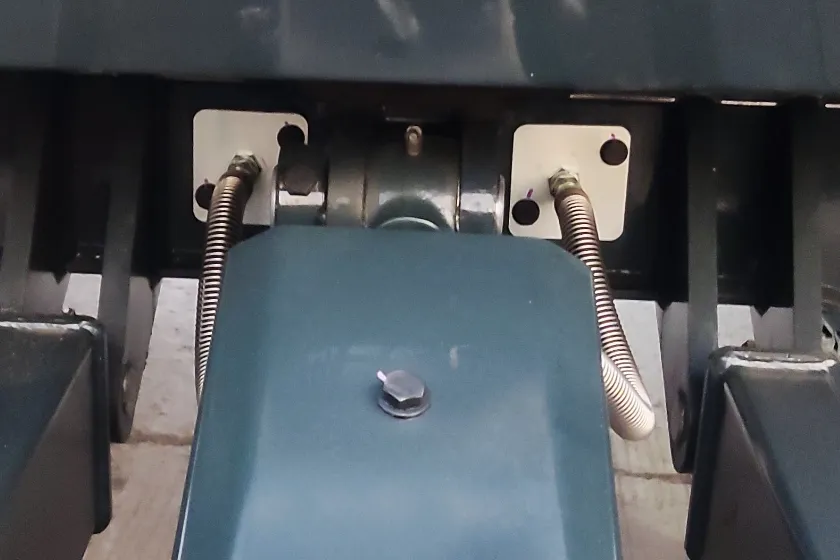

Dozer of HX33A is designed with 2-piece type hydraulic hose. This improves convenience with easy replacement of individual hoses, in case of damage.

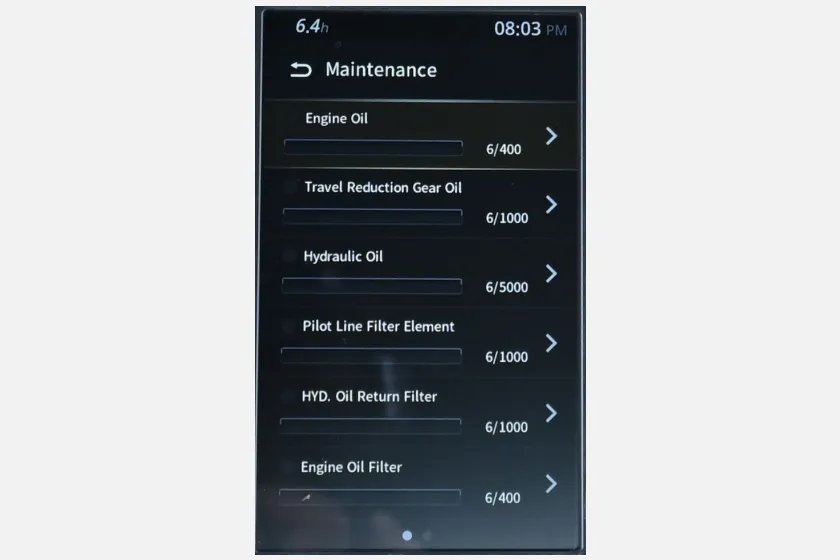

The hydraulic & engine service intervals are longest in the industry. Engine service at 400 Hours, hydraulic filter @ 1000 hours and hydraulic oil @ 5000 Hours. Longer service intervals mean less downtime and lower maintenance cost.
The Hyundai HX33A price is available on enquiry through HD CE India dealers because final cost depends on configuration, attachments, taxes, and dealer terms. The mini excavator price scales with operating weight and specifications. (Indicative range: The mini excavator price in India for this class is typically Rs.28–34 Lakh).
The Kubota D1703 Tier-4 engine is tuned for low specific fuel consumption, keeping overall HX33A fuel consumption low. Auto-engine idle drops RPM when inactive to optimize mini excavator fuel consumption across shifts, backed by a 46.8-litre fuel tank for long working hours, making it a fuel-efficient mini excavator.
Yes, it is built as a fuel-efficient mini excavator. Its Kubota D1703 Tier-4 engine (25.2 PS), auto-engine idle system, and variable displacement piston pumps match hydraulic flow directly to load demand. These features lower hourly operating costs and maximize mini excavator fuel efficiency for owners of this Hyundai mini excavator.
Standout HX33A features include a 25.2 PS engine, 3,281 kgf bucket digging force, 2,025 kgf arm crowd force, and 9.4 rpm swing speed. Essential mini excavator features cover a wide boom swing angle, dozer float, auto-shift travel speed, and a 5-inch LCD cluster. Safety-focused Hyundai excavator features include a ROPS cabin, tilt cabin, cylinder guards, anti-theft ignition, and 300 mm steel shoes.
Versatile mini excavator applications cover multiple sectors. Primary HX33A applications include serving as an excavator for agriculture (irrigation, farm ponds, land levelling) and as an excavator for urban construction (utility trenching, footpaths, drainage, narrow lane clearing). Its 3,880 kg weight and 0.11 m³ bucket also suit rental fleets.
The HX33A operating weight is 3,880 kg, placing it in the 3.9 ton mini excavator class. Core mini excavator specifications feature a 2,400 mm boom, 1,300 mm arm, 0.11 m³ bucket, 0.36 kg/cm² ground pressure on 300 mm steel shoes, full fluid tanks, and an overall width of 1,550 mm.
