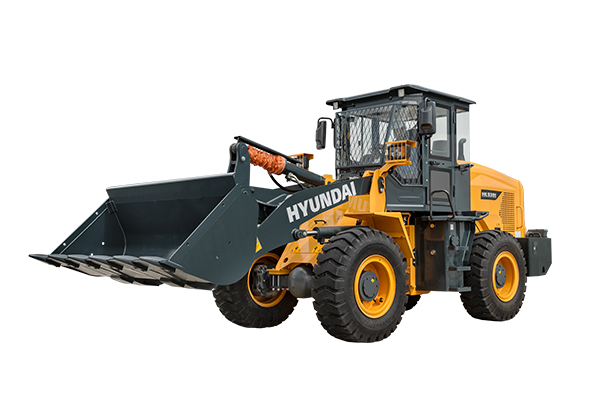

The HL650I-V is designed for efficiency, durability, and operator comfort making it an ideal choice for construction, mining, port and industrial applications. Powered by a robust electronic engine, the HL650I-V wheel loader delivers high performance and fuel efficiency. Its advanced hydraulic system enhances productivity with faster cycle times and precise control.
The spacious, ergonomically designed cab includes state-of-the-art controls and a comprehensive monitoring system, providing real-time performance data. Safety features like a rear view camera, ROPS/ FOPS cabin and automatic braking systems ensure operator safety. Easy Maintenance is reducing machine downtime. The HD CE HL650I-V wheel loader is environmentally friendly, with low emissions and noise levels.
| Equipment | UNIT | Hyundai HL650I-V |
|---|---|---|
| Operating Weight | Kg | 17600 - 18310 |
| Rated road | Kg | 5000 |
| Engine | Weichai | |
| Power | HP | 228 |
| Bucket capacity | m³ | 2.7 - 5.0 |
| Overall Size | mm | 8288x3000x3400 |
| Wheelbase | mm | 3300 |
| Unloading height | mm | 3400 |
| Bucket breakout force | kN | 186 |
| Forward Speed | kmph | 10.2/35 |
| max. Tractive force | kN | 180 |
| min. Ground clearance | mm | 398 |
| max. Turing angle | Deg. | 35° |
| Swing angle of rear axle | Deg. | ±10° |
| Pump Flow | lpm | 220 |
| System Pressure | MPa | 18 |
HL650I-V comes with New Electronically Controlled Diesel Engine which is built for Higher Performance and Fuel Efficiency.
3 Working Mode – L/M/H – For excellent fuel efficiency and productivity
Perfect combination of Engine Power and Efficient Hydraulic System to deliver faster cycle time
HL950I features a deluxe operator seat with comfortable suspension and arm rest. Seat is fully adjustable for maximum operator comfort
Spacious cabin equipped with powerful AC and HVAC for Excellent All-Around Cooling Comforts during long working hours. Cabin also provide wide 360 degree visibility for ease of operation.
Intelligent 5" Digital LED Display provides
ROPS /FOPS Cabin is standard feature for added operator safety.
Added as a standard feature for additional protection of cabin in quarry and mining application.
Rear View Camera added as standard feature which improve operator efficiency in loading operation.
Wide range of buckets available suitable for various applications as per customer requirements
| G.P. - Standard | G.P. - Option | Rock /HD | Coal | Light Material | |
| HL930I | 3.0 | 3.2 | 2.7 | 4.5 | 5.0 |
The HD Construction Equipment HL650I-V Wheel Loader is designed for applications such as coal and port operations. It is suited for businesses that need efficient loading and material movement in bulk-handling environments.
The HL650I-V Wheel Loader is particularly relevant for industries handling bulk materials in coal yards and port operations. These application references on the page indicate a strong fit for logistics-heavy and industrial loading requirements.
The HD Construction Equipment HL650I-V Wheel Loader includes a ROPS/FOPS cabin, cabin front guard, and rear view camera as standard features. The page explains that these features support added operator safety and better efficiency during loading work.
