The R220LS SMART PLUS Hyundai excavator is the machine for operations where high performance is the ultimate objective. With a high performing engine, high stability on uneven surfaces, high operating weight, bigger buckets and improved operator comfort and convenience, this machine promises maximum productivity.
| EQUIPMENT | UNIT | R220LS SMART X PLUS |
|---|---|---|
| Engine Model | Cummins 6BTAA-5.9C | |
| Gross Power | HP @ rpm | 148 @ 2000 |
| Operating Weight | Kgs | 22000 |
| Bucket Range | cu.m | 0.87-1.2 |
| Swing speed | rpm | 11 |
| Travel speed, high/ low | km/hr | 5.3 / 3.4 |
| Max. digging reach on ground | mm | 9315 |
| Max. digging Depth | mm | 6240 |
| Tail swing radius | mm | 2845 |
| Bucket digging force | kgf. | 15700 |
| Arm crowd force | kgf. | 12600 |
| Bucket Capacity | Cu.M | 0.92GP / 1.0 GP / 1.05GP / 1.2 GP / 1.1 HD / 0.95HD/ 0.92 HD / 0.87HD |
The water-cooled, 4-cycle diesel, 6-cylinder Cummins 6BTAA5.9C engine has a gross power of 148 HP @2000 rpm that not only offers optimized fuel and lube oil consumption but also low noise levels. It delivers outstanding performance even in high-heat, humid and dusty conditions.
It offers a largest size of buckets tailored for various applications, ensuring optimal performance, durability, and efficiency for every job.
The digital cluster displays key machine information like oil temperature, coolant temperature, and other vital statistics. Optimized performance is achieved by letting operator to choose between three power modes and two work modes and two User Modes.
The Hydraulics and attachments are designed to offer high digging forces.
One touch deceleration switch on top of LH joystick lowers the engine RPM when selected. The saves fuel by regulating pump and engine. Auto Idle function moderates engine RPM to idle state when machine remains idle for 4 sec by enabling MCU to send a signal to engine. This in turn reduces fuel consumption and operation cost.

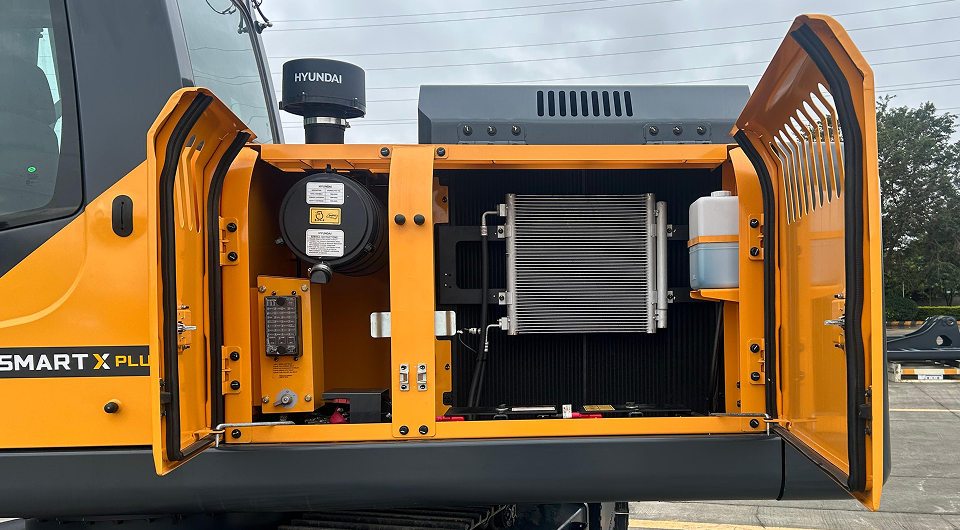

The system cools the air as it passes through the turbocharger. It results in cool, high-density air of bigger mass being pumped to the engine. This helps to achieve deliver more power output per unit of fuel burnt and high fuel efficiency.
The spacious Air Conditioned cabin creates a very comfortable working environment for the operator. The seat comes with 7 Adjustments including seat height movement. Soft joystick control ensures increased productivity and higher operator efficiency.

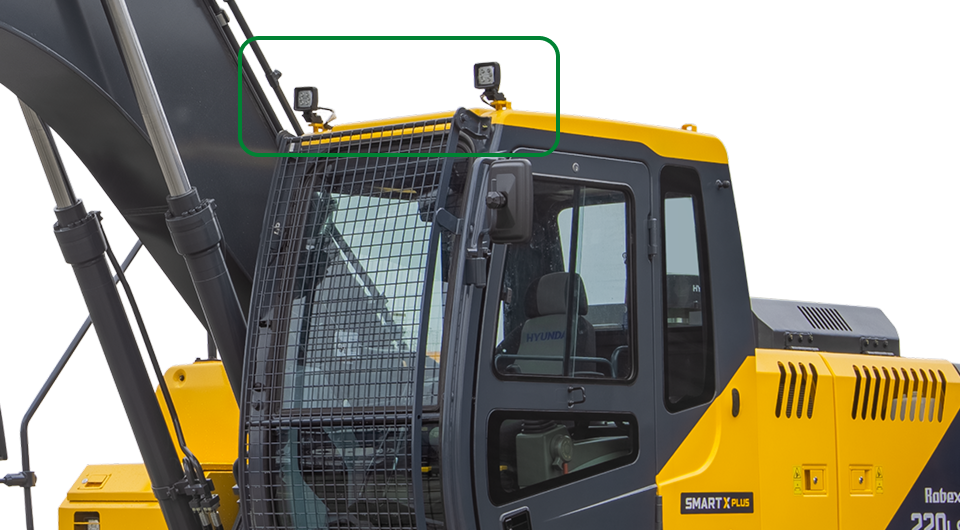

The R220LS SMART X PLUS Series excavator is equipped with features designed to enhance operational convenience. A removable floor mat for easy cleaning and improved maintenance, helping to keep the operator area neat and well-maintained. The integrated Bluetooth FM radio provides added functionality for communication and entertainment. LED lamps offer improved visibility in low-light conditions, supporting safer and more efficient operations. Additionally, the fuel filler pump simplifies the refueling process, reducing downtime on site.

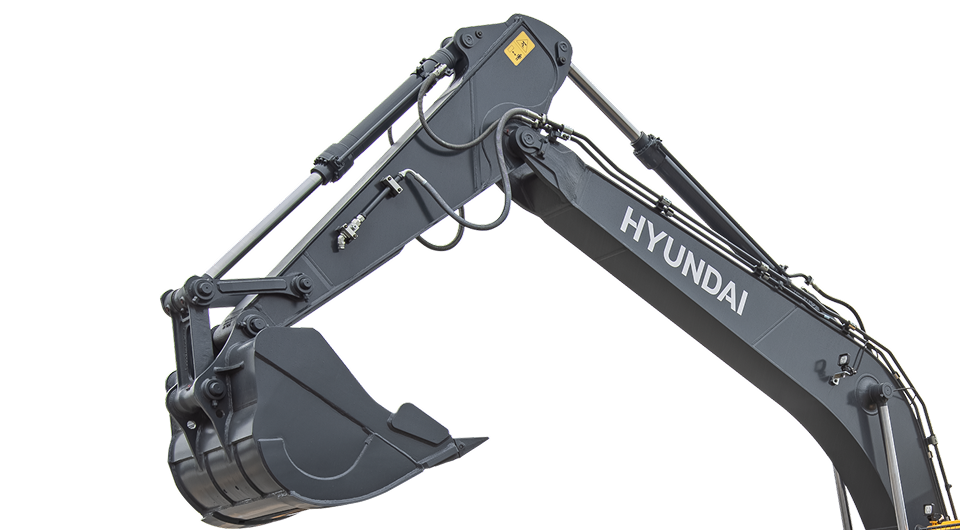

New improved boom profile for better strength. Use of dimple bushes and polymer shims to enhance durability in high-stress joint areas. The dimple bush design promotes better grease retention, improving lubrication and reducing friction over time. Polymer shims provide enhanced resistance to wear and corrosion, helping maintain tight clearances and extending the service life of the boom and arm components. Both Boom & Arm made with high tensile strength steel and are reinforced with steel bearings and internal baffle plates to maximize impact strength.

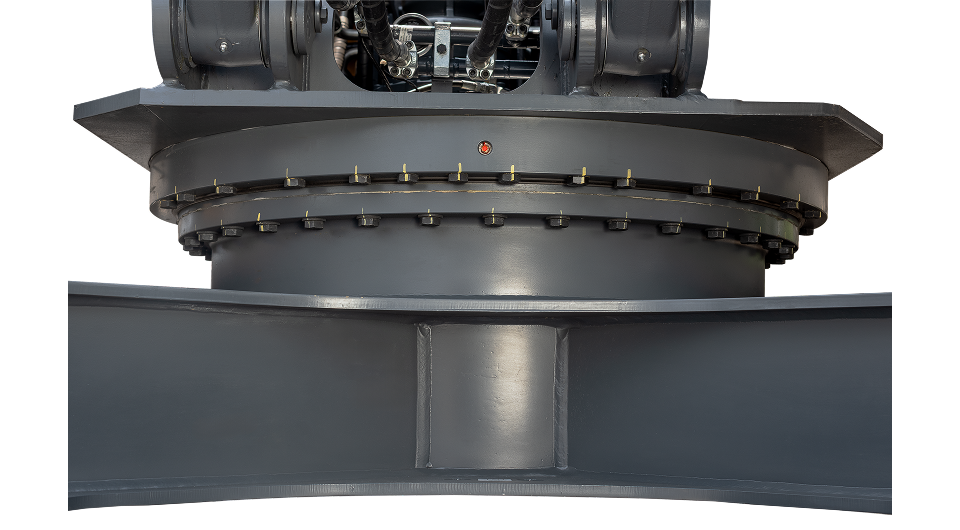

New forged ring body in lower frame enhances the durability, structural integrity and increases the machine life.

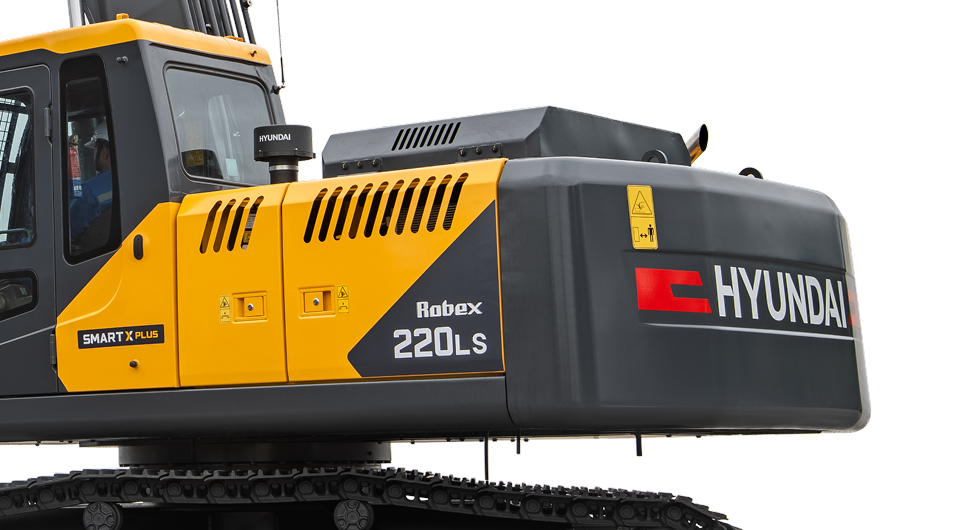

Side Member reinforcement protects the idler from any damage in tough terrains. A heavy-duty track shoe provides better stability and durability on harsh terrains.

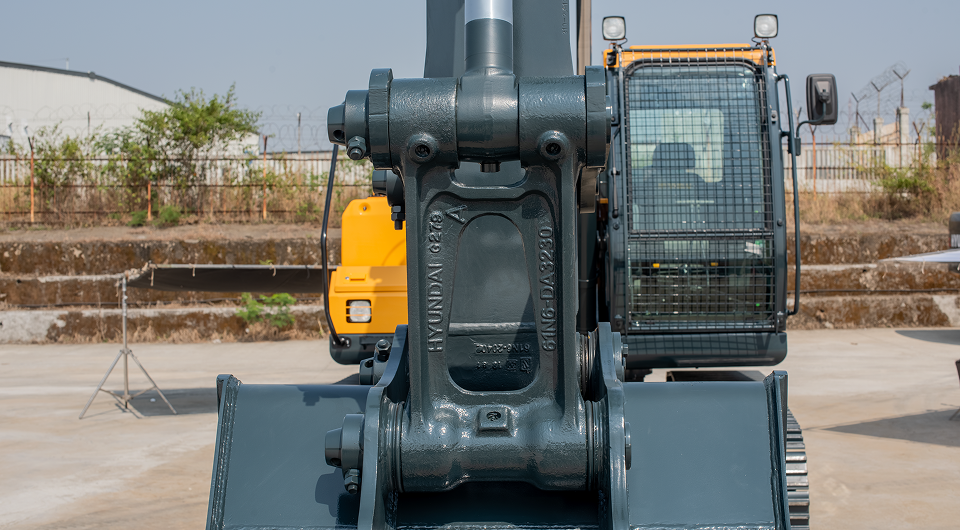

Casted H-link for Improved durability and Longer service life.

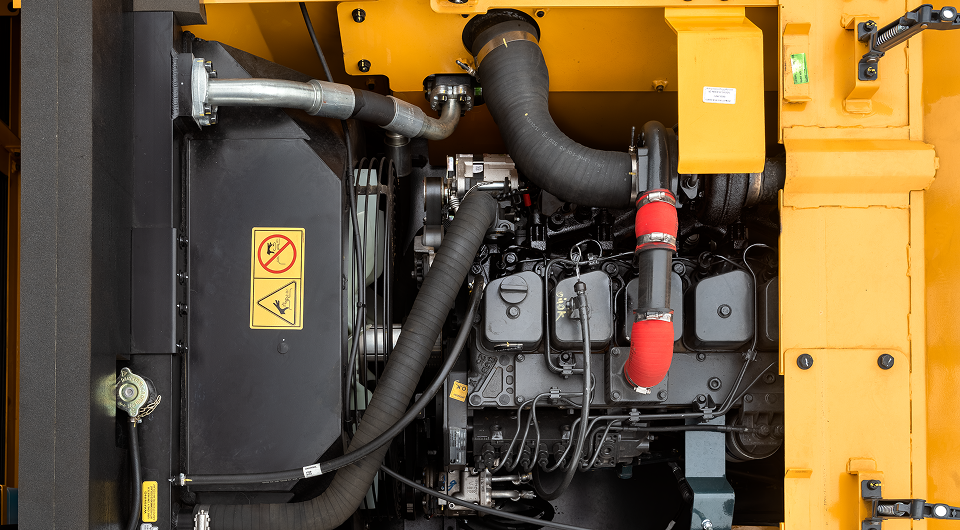

This feature monitors coolant temperature and automatically lowers engine speed if it overheats, thereby preventing premature failure of the machine.

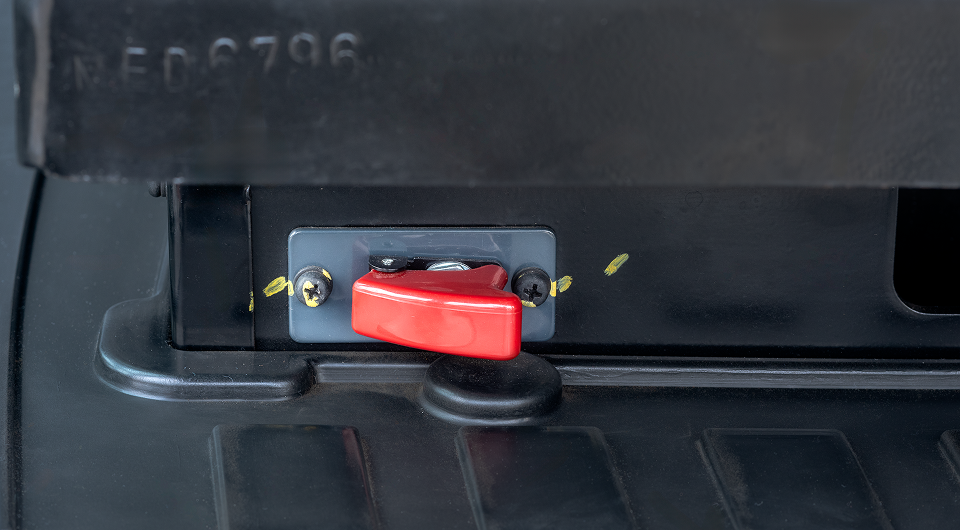

The emergency shutdown switch enhances operator safety by providing a quick and reliable way to instantly stop the machine during emergency situations.

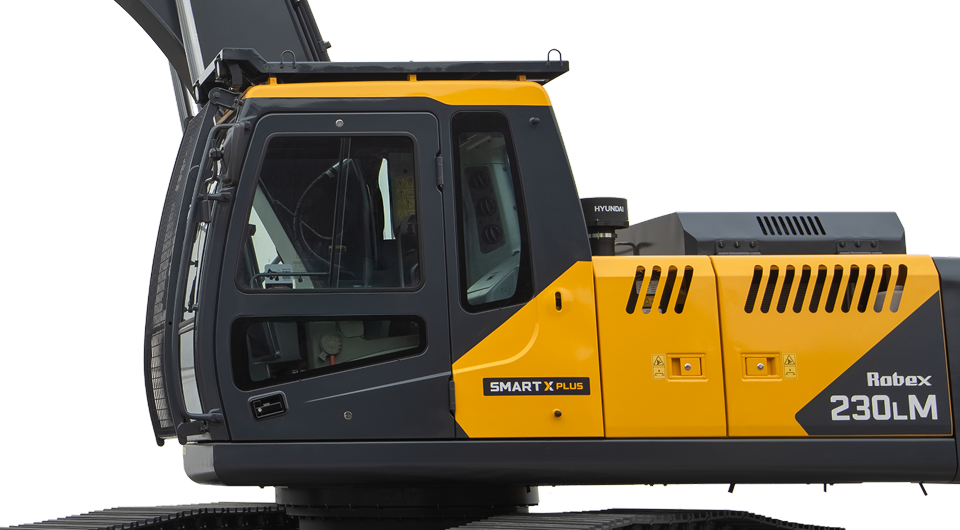

Cabin top guard protects the operator from falling objects, enhancing safety in tough working environments.

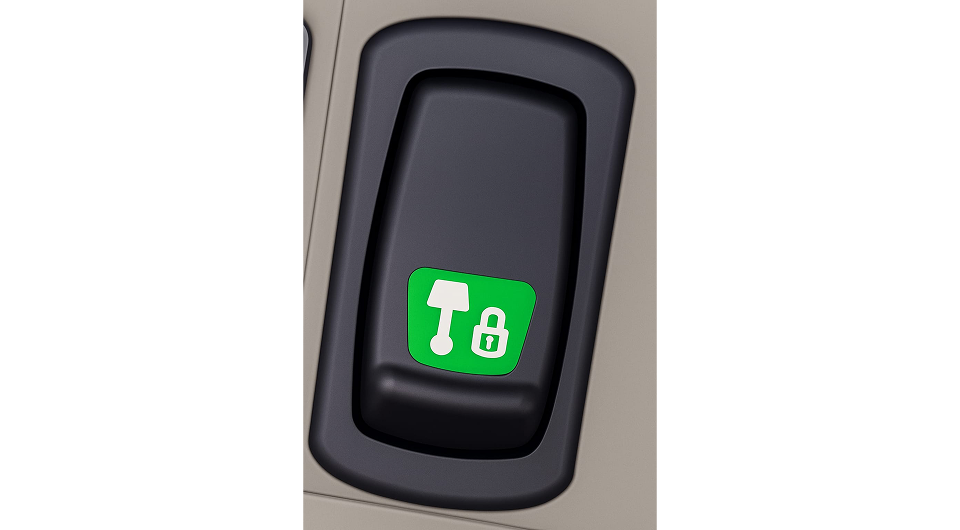

Swing lock enhances safety while working on slopes, gradients.
