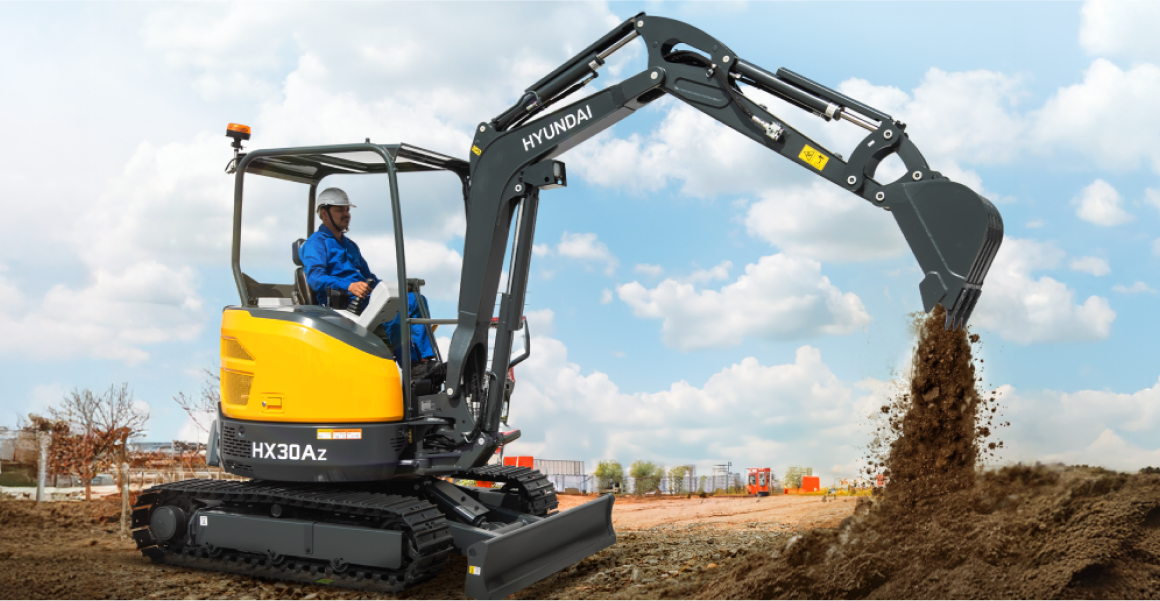

At HD Hyundai CE India, we understand that not every job site offers vast open spaces, but every job demands power, precision, and performance. That’s exactly what inspired the creation of our HX30Az Mini Excavator, a compact powerhouse engineered to excel in confined urban environments, narrow agricultural fields, and tight construction zones.
Combining cutting-edge technology with an operator-centric design, the HX30Az delivers exceptional fuel efficiency, agility, and ease of maintenance, without compromising on durability or performance. Whether you're a contractor, a farmer, or a landscaper, this machine is built to simplify your workload and amplify your results.
At the heart of the HX30Az is the Kubota D1305 Tier-4 Final engine, a compact powerhouse that delivers 25.2 PS of consistent, dependable performance. Designed for low emissions and high fuel efficiency, this engine not only meets stringent environmental standards but also helps reduce fuel consumption and maintenance costs. Whether you’re digging, lifting, or backfilling, the engine ensures smooth operation with minimal downtime, making it ideal for cost-conscious contractors.
Tight spaces demand precision, and the HX30Az delivers. Its zero tail swing design allows the upper body of the machine to stay within the track width, even during full rotation. This means you can work confidently next to walls, buildings, or in narrow alleyways without risking accidental impact or damage, making it a perfect fit for urban construction, landscaping, and indoor projects.

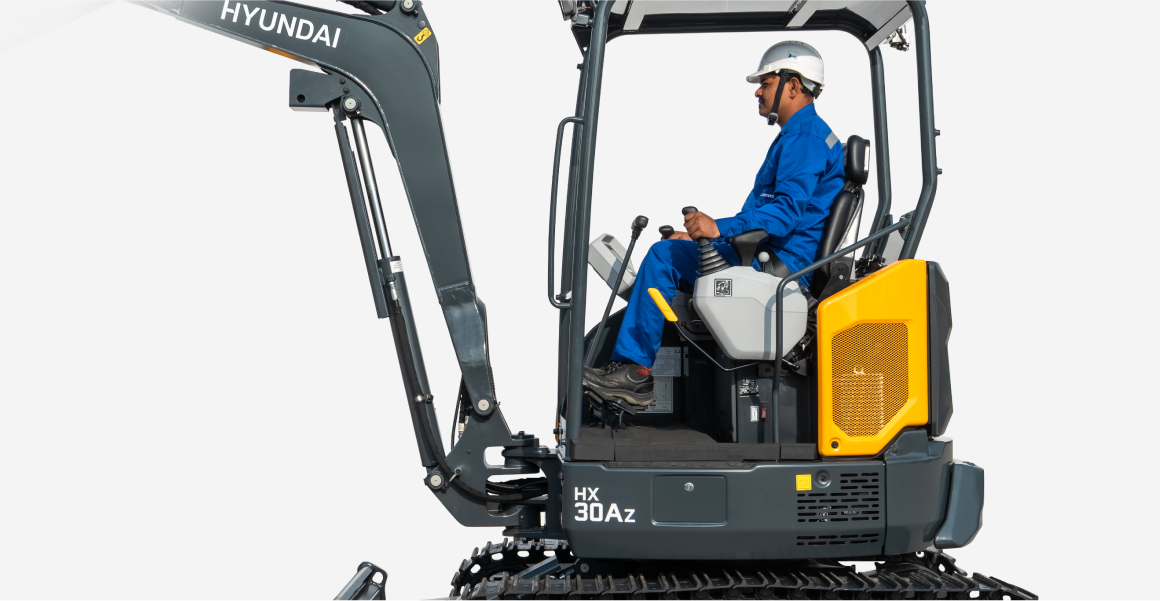

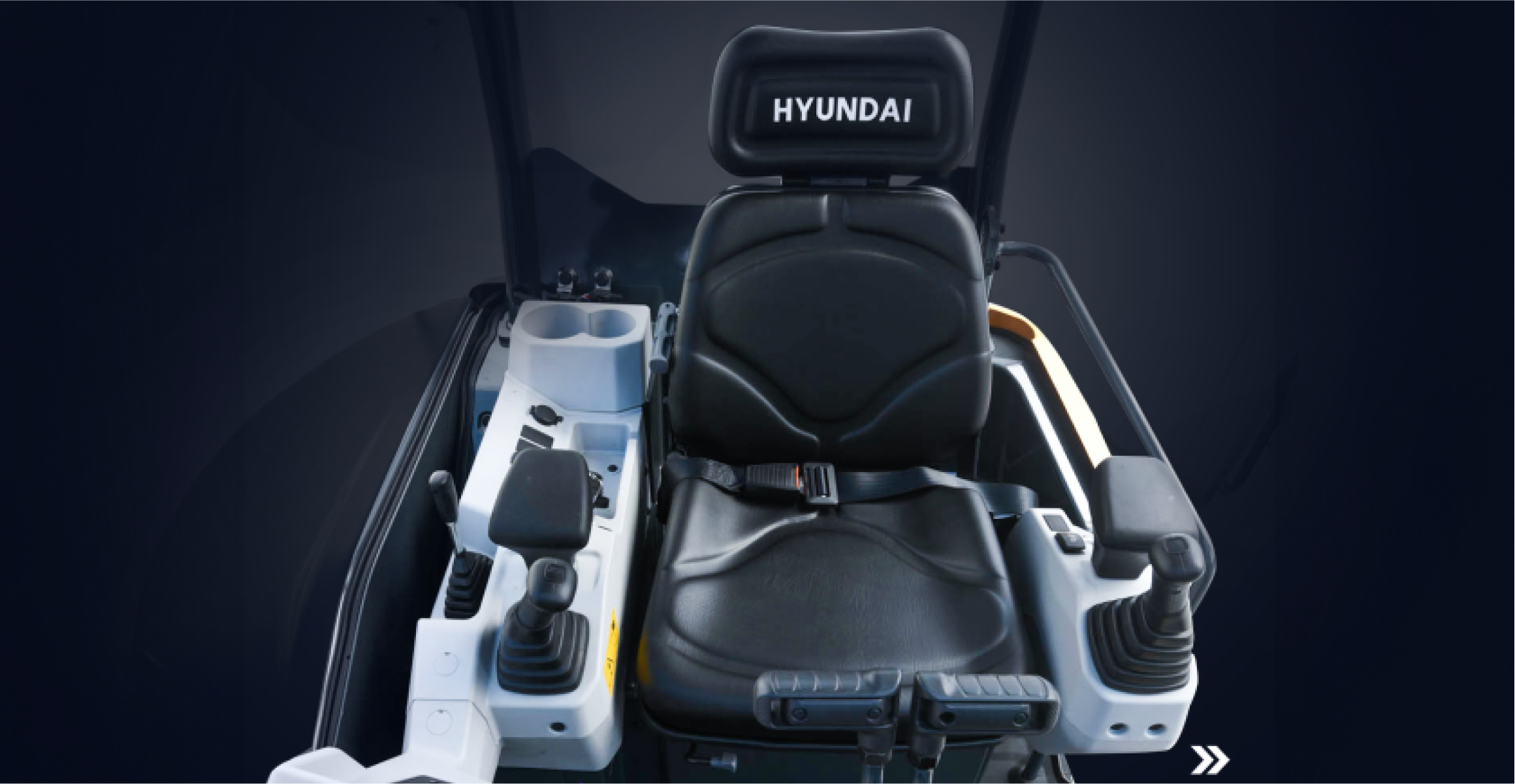

Operator well-being is at the core of the HX30Az’s design. The premium canopy offers a spacious environment with an adjustable suspension seat, foldable pedals, and responsive joystick controls, all ergonomically positioned to minimize strain during long shifts. Whether you're working in hot sun or tight job sites, the HX30Az ensures that comfort and productivity go hand in hand.
Stay in control with the intuitive 5-inch colour LCD cluster that gives real-time updates on machine health. From fuel levels and service reminders to warning alerts and performance stats, everything is displayed clearly and accessibly. It empowers operators to make informed decisions on the go, reducing guesswork and enhancing operational efficiency.

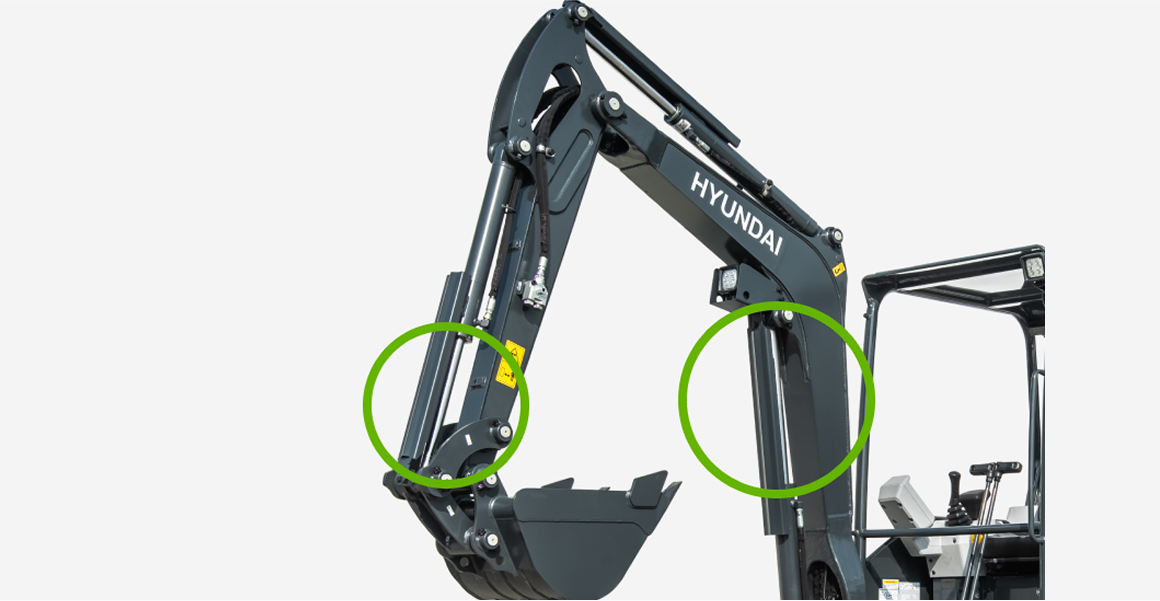

Heavy-duty tasks often bring risk, but the HX30Az is built to mitigate it. Reinforced cylinder guards on the boom, arm, and bucket provide critical protection against debris, impact, and abrasive wear. These guards not only help preserve hydraulic components but also extend the overall life of the machine, keeping your investment secure.
A wider boom swing angle gives you more flexibility when operating near obstacles or in confined areas, helping you maximize digging accuracy and minimize machine repositioning. The HX30Az’s sturdy undercarriage and rugged front attachment ensure it can handle challenging job sites from urban lots to semi-rough terrain.

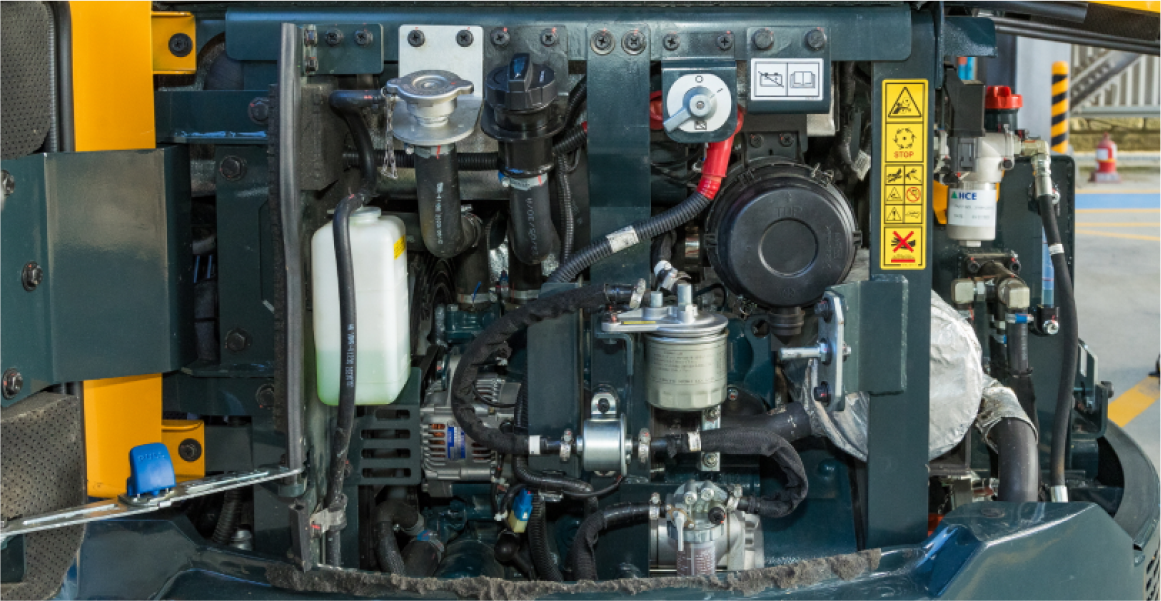

Designed with ease of serviceability in mind, the HX30Az features rear and side cowls that provide quick and convenient access to the engine and hydraulic components. The machine also boasts extended maintenance intervals, including hydraulic oil changes every 5,000 hours, helping you cut down on service costs and avoid unnecessary downtime.
| Feature | Specification |
|---|---|
| Engine Model | Kubota D1305 |
| Gross Power | 25.2 PS @ 2400 rpm |
| Operating Weight | 2875 Kg |
| Bucket Range | 0.08 m³ GP |
| Swing Speed | 9.16 rpm |
| Travel Speed (High/Low) | 4.35 / 2.38 km/hr |
| Max. Digging Reach | 4725 mm |
| Max. Digging Depth | 2695 mm |
| Max. Digging Height | 4290 mm |
| Bucket Digging Force | 2093 kgf |
| Arm Crowd Force | 1313 kgf (with 1.3m arm) |
Whether you're working in fields, towns, or developing new plots, the HX30Az is versatile enough to handle it all:
Perfect for trenching, soil preparation, stump removal, and creating irrigation channels, while preserving surrounding crops and compacted soil.
With its compact size and zero-tail swing, it's perfect for road repairs, drainage work, and utility maintenance in city environments.
Whether it's water, gas, or telecom, the HX30Az excels in narrow trench digging and precise pipeline placement in both urban and rural areas.
From levelling plots to digging foundations or constructing ponds, the HX30Az offers reliable performance for small to mid-scale construction and landscaping tasks.
Designed with a robust build, sophisticated hydraulic systems, and top-tier safety features, the Hyundai HX30Az Excavator stands out as a compact and impactful mini excavator.
It excels in fuel efficiency, operational precision, and ease of control, providing reliable performance in tight spaces while maintaining impressive power and safety standards. This makes it a versatile solution for applications spanning agriculture to urban development.
If you're looking for a mini excavator that’s smart, efficient, and tailored for today’s field demands, the HX30Az is ready to dig in.
